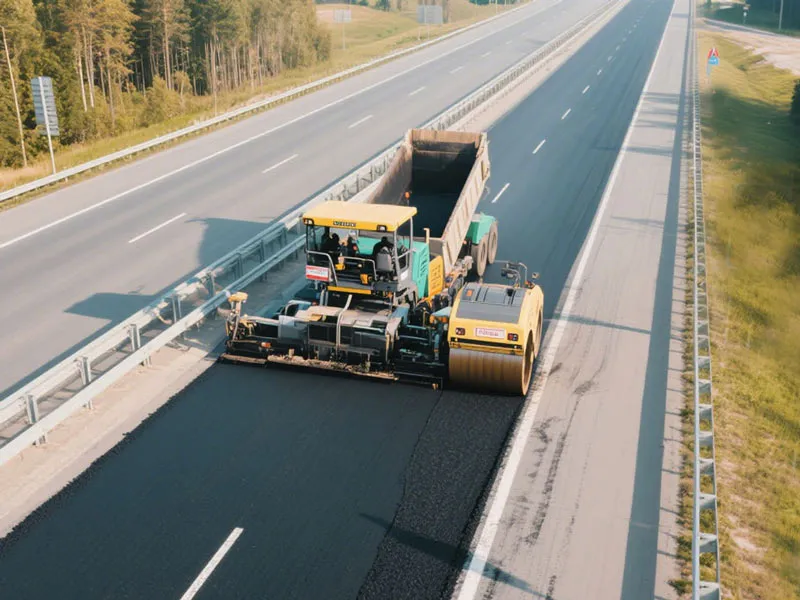

As the core artery of national transportation network, highway has very high requirements on asphalt mixture quality, production efficiency and environmental protection. Choosing the appropriate asphalt mixing plant equipment is the key to ensure the progress of the project, reduce costs and improve quality.
Highway Construction: From Problems to Solutions
Highway high demand for asphalt, need to meet the high temperature stability, rutting resistance, crack resistance and other properties, the mix grading accuracy requirements are stringent.
 |
 |
 |
|---|
1.Quality defects: Insufficient grading accuracy, high fluctuation of oil-rock ratio and severe material segregation
- Equipped with hot aggregate metering hopper with cumulative metering as well as overflow pipe and waste pipe, it has automatic compensation for fallout and overweight alarm and locking function to improve weighing accuracy;
- Built-in upper and lower air extraction and dust removal pipeline design, eliminating the airflow-induced weighing value drift, ensuring weighing accuracy;
- Adopting the first batch of error control technology to improve the weighing accuracy and ensure the quality.
- Dynamic precision control of the secondary measurement technology, based on the amount of stone to the asphalt secondary correction measurement, strictly guarantee the oil/stone ratio, to avoid the loss of asphalt, but also to ensure the quality of the finished product of asphalt
2.Capacity bottlenecks: Unstable equipment capacity, poor production continuity and high equipment failure rate
Adopting vibration inclination optimization design, full screening area, improve screening efficiency, ensure strict grade ratio, ensure the output.
3.Environmental risks:Excessive dust fugitive emissions, substandard treatment of emissions and noise pollution
- The outer cover of the screen body is equipped with an exhaust duct, effectively preventing dust from escaping, fully enclosed structure, negative pressure dust-proof, no dust leakage, avoiding environmental pollution.
- Equipped with high-pressure pulse type bag filter, high dust removal efficiency, to meet the local environmental requirements, to avoid complaints due to environmental issues.
Core equipment selection guide

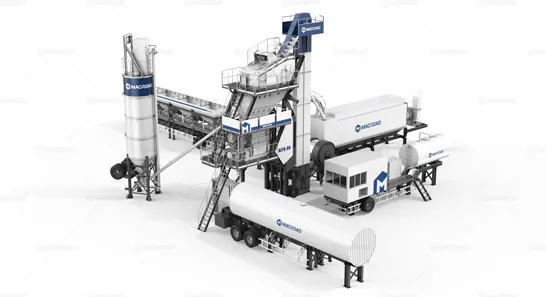

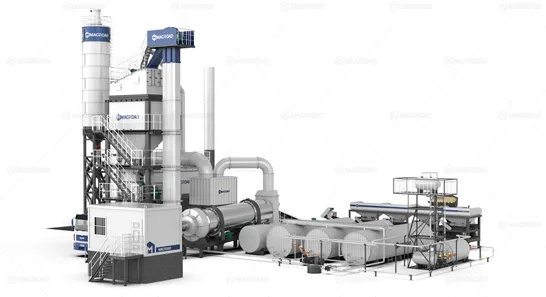

In highway construction, choosing the right asphalt mixing plant is crucial. Batch type asphalt mixing plants(ALQ Series) and mobile asphalt batching mixing plants(ALYQ Series) are equipped with highly efficient production capacity and excellent mixing performance to meet the stringent requirements of asphalt mixtures for highways. They not only support the need for high temperature stability and rutting resistance, but also provide environmental protection and production efficiency. Therefore, understanding the features and applicable scenarios of these two plants is crucial to the success of the project.
 |
 |
 |
|---|---|---|
| ALQ Series | Model | ALYQ series |
| Fixed installation, suitable for long-term stable production | Flexibility | Modular design, support for quick dismantling and transferring |
| 40-320t/h Continuous high output | Production Capacity | 60-160t/h Flexible capacity adjustment |
| Transition cycle of more than one month | Installation Requirements | Transition cycle 7-10 days |
| There are gravity dusting, snail dusting, cyclone dusting, water dusting, bag dusting multiple choices | Environmental Suitability | Gravity de-dusting + bag de-dusting with limited options |
| Low initial investment, high turnaround costs | Investment Costs | High initial investment, low turnaround costs |
Parameter Table
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
|---|---|---|---|---|---|---|---|---|---|
| Output(t/h) | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 240 | 320 |
| Cold Aggregate Feeding System | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 5×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Hopper Capacity(m) | 4*4.5 | 4*6.5 | 4*7.5 | 4*7.5 | 5*7.5 | 5*12 | 5*12 | 5*12 | 6*15 |
| Collect Belt Capacity(t/h) | 60 | 80 | 100 | 120 | 140 | 200 | 220 | 280 | 360 |
| Dryer Size(m) | φ1.2*5.2 | φ1.5*6 | φ1.5*6.7 | φ1.65*7 | φ1.8*8 | φ2.2*9 | φ2.6*9 | φ2.6*9.5 | φ2.8*10.2 |
| Dryer Capacity (t/h) | 60 | 80 | 100 | 120 | 140 | 180 | 240 | 260 | 360 |
| Fuel Max Consumption(kg/h) | 300 | 450 | 550 | 700 | 950 | 1200 | 1400 | 1700 | 2250 |
| Vibrating Screen(Layer) | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 |
| Aggregate Metering hopper(kg) | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Mineral Flour Metering hopper (kg) | 120 | 150 | 200 | 200 | 300 | 300 | 320 | 600 | 700 |
| Bitumen Metering hopper (kg) | 100 | 120 | 150 | 150 | 250 | 250 | 250 | 480 | 500 |
| Weighing accuracy | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% |
| Mixer Capacity(kg) | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Cycle Time(s) | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Dust filter (Bag dust filter) | |||||||||
| Filter Area(m2) | 230 | 300 | 420 | 480 | 550 | 650 | 700 | 1050 | 1350 |
| Draught Fan(kw) | 22 | 30 | 45 | 55 | 90 | 110 | 2*75 | 2*90 | 2*110 |
| Asphalt Temperature (⊥) | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 |
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 |
|---|---|---|---|---|---|
| Output (t/h) | 60 | 80 | 100 | 120 | 160 |
| Hopper Capacity(m) | 4*6.5 | 4*7.5 | 4*7.5 | 4*7.5 | 5*8 |
| Collect Belt Capacity (t/h) | 80 | 100 | 120 | 140 | 180 |
| Dryer Size(m) | φ1.5*6 | φ1.5*6.7 | φ1.65*7 | φ1.8*8 | φ1.9*9 |
| Dryer Capacity(t/h) | 80 | 100 | 120 | 140 | 180 |
| Fuel Max Consumption(kg/h) | 450 | 550 | 700 | 950 | 1200 |
| Mixing Tower（kW） | 54 | 63.5 | 104.5 | 125 | 157.5 |
| Vibrating Screen (Layer) | 4 | 4 | 4 | 4 | 4 |
| Aggregate Metering hopper(kg) | 800 | 1000 | 1300 | 1500 | 2000 |
| Mineral Flour Metering hopper(kg) | 150 | 200 | 200 | 300 | 300 |
| Bitumen Metering hopper(kg) | 120 | 150 | 150 | 250 | 250 |
| Weighing accuracy | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% |
| Mixer Capacity(kg) | 800 | 1200 | 1300 | 1700 | 2200 |
| Cycle Time(s) | 45 | 45 | 45 | 45 | 45 |
| Filter Area(m2) | 370 | 420 | 480 | 510 | 620 |
| Draught Fan (kw) | 30 | 45 | 55 | 90 | 110 |
| Asphalt Temperature (⊥) | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 |
| Total power(kw) | 200 | 300 | 350 | 380 | 490 |
Successful Cases

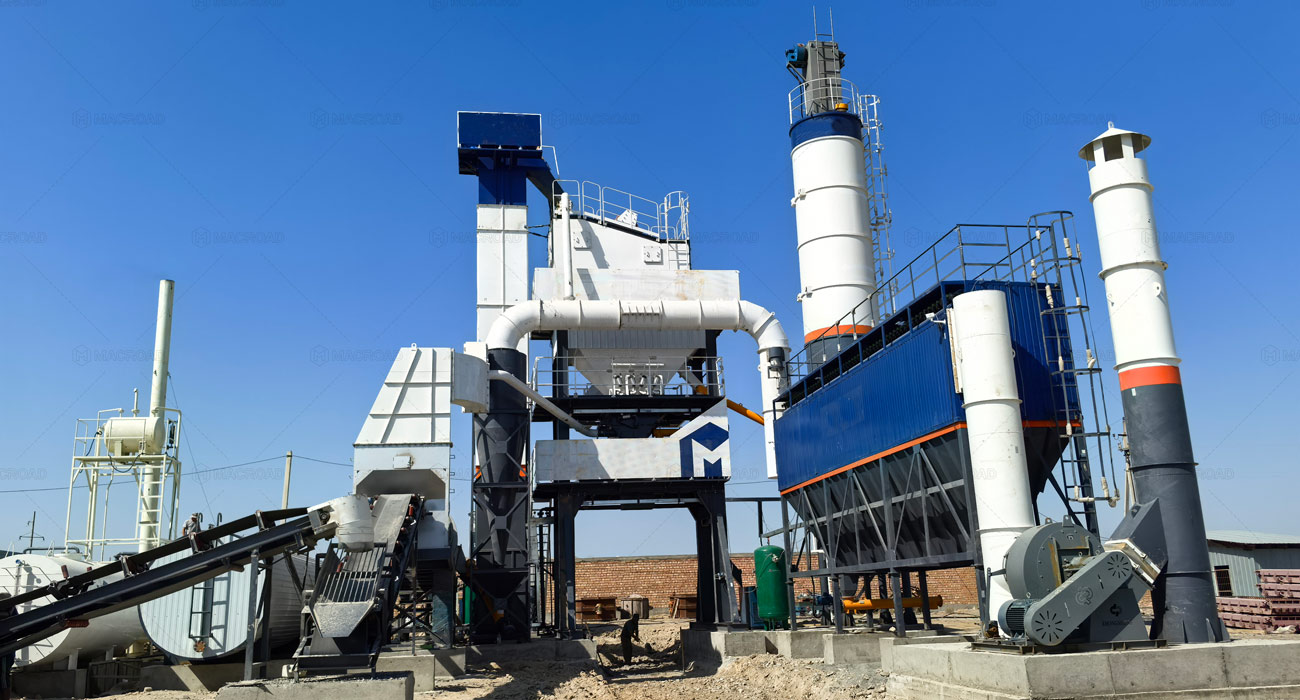

ALQ80 Asphalt Mixing Plant has been Shipped to the Philippines
- Productivity: 80 t/h
- Project Details: They are highly satisfied with its performance and reliability. From delivery to setup, the process was seamless, thanks to Macroad’s dedicated support team. It is perfectly suited for the high way road construction projects.

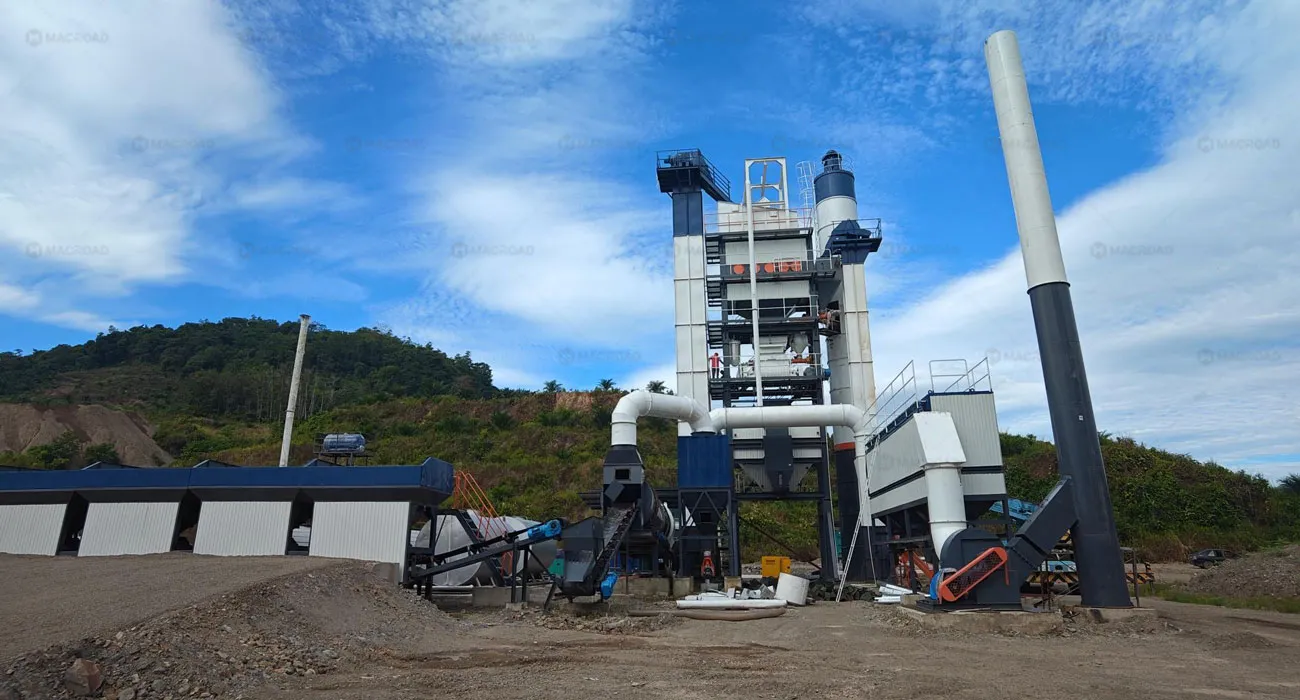

Outstanding Performance of ALQ120 Asphalt Batch Mix Plant in Malaysia
- Productivity: 120 t/h
- Project Details: From delivery to installation, the entire process was highly efficient and smooth, thanks to the dedicated support of Macroad’s professional team. The ALQ120 Asphalt Batch Mix Plant has won high praise from customers for its excellent performance and reliability, and it fits perfectly with the requirements of highway construction projects in Malaysia.
ALQ100 Asphalt Mixing Plant: A High – Performance Solution Sets Sail for Indonesian Highway Construction
- Model: ALQ 100
- Project Details: The ALQ100 Stationary asphalt mixing plant, with a productivity of 100 t/h, has been successfully shipped to Indonesia, ready to make a significant impact on the nation’s highway construction endeavors. Thanks to the unwavering support of Macroad’s professional team, the delivery and installation process was executed with remarkable efficiency and seamless precision.
