Municipal roads are an important driving force for urban development, which can effectively enhance transportation efficiency, improve the quality of life of residents, enhance the image and competitiveness of the city, and promote sustainable urban development. However, municipal road construction is highly sensitive to construction efficiency, environmental standards and social impact. How to realize efficient production and fast paving of asphalt mixtures in limited urban space? Choosing the ideal asphalt production and paving plant is crucial.
Macroad, as a qualified asphalt mixing plant manufacturer, is well versed in meeting the needs of municipal road projects and can provide optimal solutions in terms of equipment selection, construction process optimization and meeting local environmental requirements to help the project succeed.
How Core Equipment Components Solve Municipal Road Construction Issues
- Complex construction environment: the operation area is located in densely populated areas, which needs to take into account the traffic diversion and the impact of public life.
- Diversified material requirements: covering main roads, sidewalks, non-motorized roads and other scenarios, which need to be adapted to different grades of asphalt and mixture formulations.
- High environmental requirements: strict control of dust, noise and exhaust emissions, night construction needs to comply with the city’s environmental regulations.
- Intermittent production requirements: road maintenance projects show “multi-batch, small batch” production characteristics
 |
 |
 |
|---|
1.Asphalt quality can not be guaranteed: multiple batches of asphalt can not realize the accurate proportioning
- Improve aggregate weighing precision: Equipped with hot aggregate metering hopper with cumulative measurement, as well as overflow and waste tanks, with automatic compensation for fallout and overweight alarm and locking function;
- Improve the weighing precision of powder: the discharge port of powder bin adopts valve port control; the powder metering hopper adopts cone design
- Adopts dynamic precise control of secondary measurement technology: according to the amount of stone material on the asphalt of the secondary correction measurement, strictly guarantee the oil/stone ratio, to avoid the loss of asphalt
2.Inefficiency and tight schedule: Site area constraints on equipment deployment, tight schedule for municipal projects and high quality requirements
- The equipment adopts structured modular design and is equipped with a chassis, which is convenient for disassembly and assembly and ensures short downtime of the equipment.
- The use of high-precision boring machine to process the shaft hole, to ensure the concentricity of the shaft end, the mixing shaft in the process of bearing wear and tear is small, long service life, to reduce the failure due to wear and tear of the large shaft, reduce the downtime brought about by the maintenance.
- The mixing drive adopts the direct connection mode of motor and reducer with the big shaft, non-traditional chain transmission, good transmission synchronization, to ensure that the mixing shaft mismatch is avoided due to unsynchronized rotation, reduce the incidence of failures, and ensure the continuous operation of the equipment.
- Vibrating screen adopts 4 layers of double vibration motor linear screen, linear vibrating screen maintenance is convenient, vibration motor work 1500 hours before maintenance, reduce the maintenance time, reduce the impact on the work schedule5. The burner is equipped with a unique blowing pipeline, which eliminates the need for frequent manual cleaning of the burner gun, effectively prevents the oil circuit from clogging, reduces the maintenance cost, and reduces the loss of downtime caused by equipment maintenance or overhaul.
- Optimized design of elastic tensioning device (spring), which plays a buffer role when the plate chain is working, reduces the risk of wear and breakage of the plate chain, and reduces the failure rate.
3.Environmental risks: residents’ complaints about dust, asphalt equipment noise nuisance
- High-pressure pulse bag filter, more thorough dust removal, higher efficiency, to meet the local environmental requirements, to avoid complaints due to environmental problems
- The screening system is equipped with an exhaust pipe outside the screen body, which effectively prevents the dust from escaping, and the fully closed structure, negative pressure dust prevention, no dust leakage, avoiding environmental pollution and equipment downtime caused by dust pollution.
- Multi-stage dust removal system, a gravity dust removal or worm shell dust removal or cyclone dust removal, secondary bag dust removal or water dust removal, so that the dust according to the size of the particle size grading recycling use, to ensure that the equipment environmental protection to meet the standard
Core Equipment Selection Guide

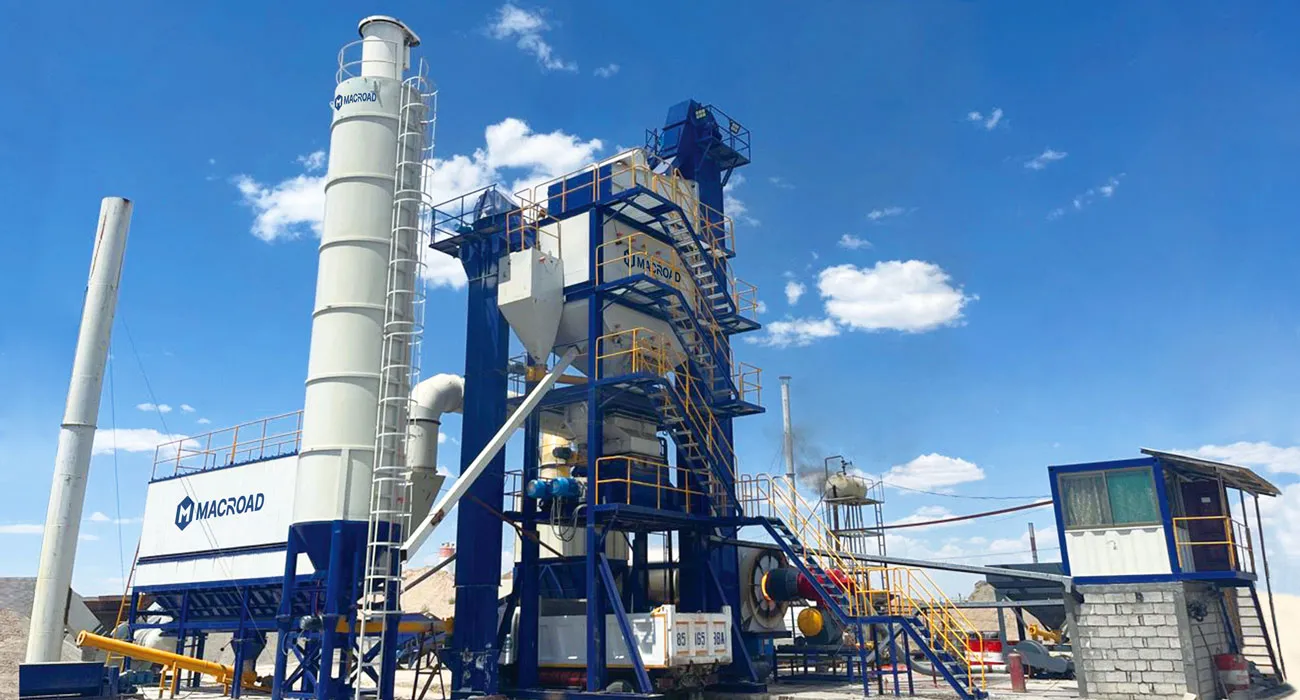

In the construction of municipal roads, Macroad provides batch type asphalt plant, which can accurately meet the high standards of grading accuracy and mix quality required by municipal projects by virtue of its precise proportioning process, which can independently complete the drying, weighing and forced mixing of aggregates. Moreover, the equipment provides 40-3200t/h multi-level capacity configuration, which can be flexibly adapted to the typical needs of intermittent material supply and multi-segment construction of municipal projects.

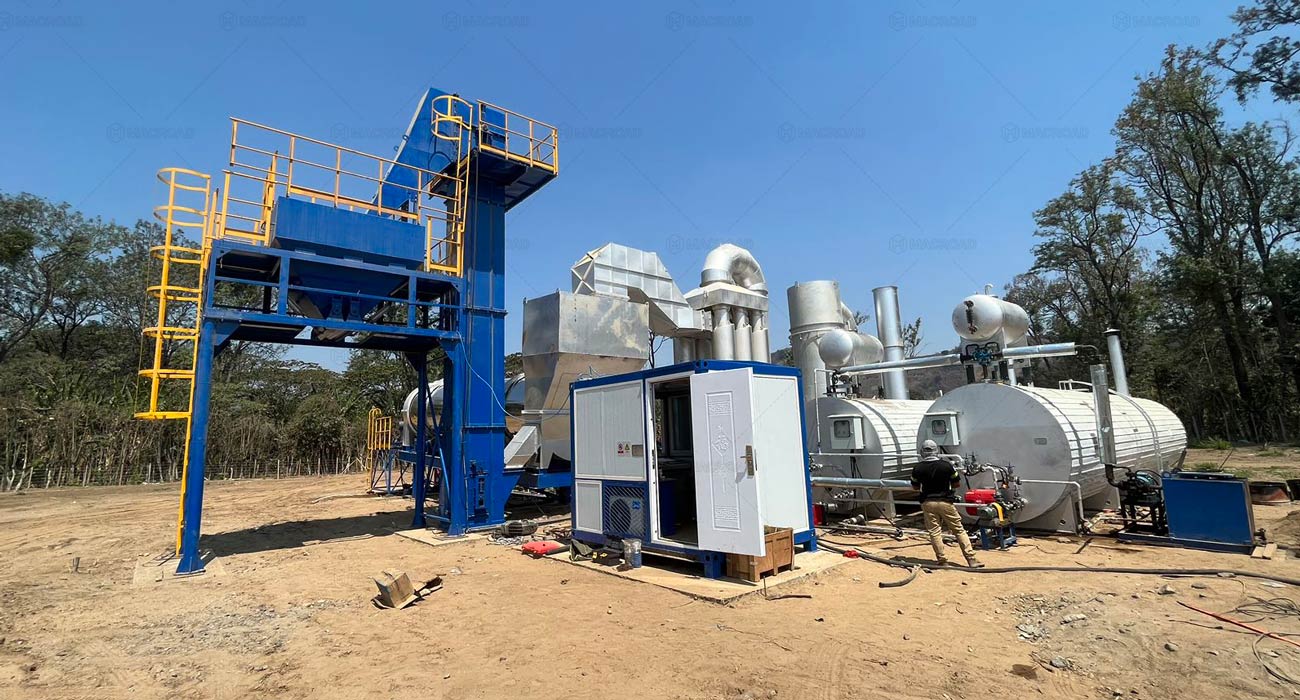

For roads with low traffic and pedestrian traffic, Macroad recommends the more cost-effective drum mix asphalt plant. The continuous production process of a drum mix asphalt plant provides a constant supply of asphalt to meet the needs of municipal roadway mass production.
Macroad engineering team through the integration of equipment selection, site planning and operation and maintenance training of the whole process of service, to ensure that the quality of municipal road construction and construction efficiency of the double enhancement.
 |
 |
 |
|---|---|---|
| ALQ Series | Model | ALT Series |
| Fixed vertical layout, multi-module independent structure, large footprint | Structure Type | Fixed drum integrated structure, integrated drying and mixing functions, occupies a small space |
| Intermittent production (batch cycle operation) | Production Process | Continuous production (continuous feed of raw materials, continuous output of finished products) |
| Multi-stage aggregate proportioning control | Control System | Continuous flow monitoring with temperature linked control |
| Large volume batch production for multiple recipe switching | Capacity Characteristics | Continuous discharge without interruption, suitable for long-term supply of a single recipe. |
| High formulation flexibility; Excellent mix uniformity; Suitable for high quality asphalt | Equipment Performance | Higher thermal efficiency; Single quality asphalt; Compact structure and small footprint |
| Comprehensive municipal roadway projects with multiple types of mix requirements | Project Adaptability | Single-formula centralized feeder for large-scale municipal road projects. |
Core equipment parameter
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
|---|---|---|---|---|---|---|---|---|---|
| Output(t/h) | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 240 | 320 |
| Cold Aggregate Feeding System | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 5×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Hopper Capacity(m) | 4*4.5 | 4*6.5 | 4*7.5 | 4*7.5 | 5*7.5 | 5*12 | 5*12 | 5*12 | 6*15 |
| Collect Belt Capacity(t/h) | 60 | 80 | 100 | 120 | 140 | 200 | 220 | 280 | 360 |
| Dryer Size(m) | φ1.2*5.2 | φ1.5*6 | φ1.5*6.7 | φ1.65*7 | φ1.8*8 | φ2.2*9 | φ2.6*9 | φ2.6*9.5 | φ2.8*10.2 |
| Dryer Capacity (t/h) | 60 | 80 | 100 | 120 | 140 | 180 | 240 | 260 | 360 |
| Fuel Max Consumption(kg/h) | 300 | 450 | 550 | 700 | 950 | 1200 | 1400 | 1700 | 2250 |
| Vibrating Screen(Layer) | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 |
| Aggregate Metering hopper(kg) | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Mineral Flour Metering hopper (kg) | 120 | 150 | 200 | 200 | 300 | 300 | 320 | 600 | 700 |
| Bitumen Metering hopper (kg) | 100 | 120 | 150 | 150 | 250 | 250 | 250 | 480 | 500 |
| Weighing accuracy | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% |
| Mixer Capacity(kg) | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Cycle Time(s) | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Dust filter (Bag dust filter) | |||||||||
| Filter Area(m2) | 230 | 300 | 420 | 480 | 550 | 650 | 700 | 1050 | 1350 |
| Draught Fan(kw) | 22 | 30 | 45 | 55 | 90 | 110 | 2*75 | 2*90 | 2*110 |
| Asphalt Temperature (⊥) | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 |
| Model | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 |
|---|---|---|---|---|---|
| Output (t/h) | 20 | 40 | 60 | 80 | 100 |
| Power Fuel Oil(kw) | 34 | 65 | 105 | 135 | 170 |
| Power Burning Coal (kw) | 40 | 75 | 120 | 165 | 200 |
| Cold Aggregate Feeding System | 3.5m3*1 | 4m3*4 | 4m3*4 | 6.5m3*4 | 6.5m3*4 |
| Finihnsed Asphalt Storage Bin (t) | 3 | 3 | 7 | 7 | 9 |
| Asphalt Temperature (℃) | 120-180 | 120-180 | 120-180 | 120-180 | 120-180 |
| Fuel Consumption Fuel Ol (kg/t) | 5-7.5 | 5-7.5 | 5-7.5 | 5-7.5 | 5-7.5 |
| Fuel Consumption Buning Coal(kg/t) | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 |
| Asphalt Tank (t) | 10 | 20 | 30 | 30 | 35 |
| Control Room(m) | 2.2 | 2.2 | 3 | 3 | 3.5 |
| Option: Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter |
Successful Cases
ALQ60 Batch Type Asphalt Plant for Municipal Road Construction in Indonesia
- Location: Indonesia
- Project Details: In the construction of municipal road infrastructure in Indonesia, the ALQ60 hot mix asphalt mixing plant has demonstrated excellent project suitability with its precise process control and stable operation. The plant has been able to ensure the uniformity of aggregate heating and the accuracy of mix gradation under complex climatic conditions.
Localized Service-Enabled ALQ90 Batch Type Asphalt Plant: Empowering Sri Lankan Municipal Road Construction
- Productivity: 90 t/h
- Operator Praise Highlights: The integrated intelligent operation and maintenance platform is a game-changer, according to on-site teams. It enables real-time remote monitoring and predictive maintenance alerts, minimizing downtime and enhancing overall productivity. Operators emphasize that the ALQ90 stationary asphalt plant not only meets but exceeds expectations, providing a seamless balance of high-quality performance and ease of use—an essential asset for modern Sri Lankan road infrastructure development.
Revolutionizing Kyrgyzstan’s Roads: The Indispensable ALT60 Drum-Mixing Asphalt Plant
- Productivity: 60 t/h
- Project Leader:The integrated intelligent operation and maintenance platform has been particularly well-received. Operators note that its real-time remote monitoring capabilities and predictive maintenance alerts have been instrumental in optimizing plant efficiency, reducing downtime, and maximizing productivity. This state-of-the-art technology not only enhances the quality of asphalt production but also marks a significant step forward in Kyrgyzstan’s road construction capabilities, making the ALT60 an indispensable asset for the country’s infrastructure development.
