Adaptation to extreme cold regions
Equipment stability and low failure rate
In extremely cold regions, climatic conditions have a great impact on resource development and livelihood protection. Promoting the construction of road infrastructure plays a key role in opening up the veins for the transportation of materials and promoting the development of energy and minerals.
The road project under the extreme cold environment needs to face two systematic challenges of equipment adaptability and continuous operation, and the cold-resistant design and intelligent construction control of asphalt mixing plant have become the core technology to break through the low-temperature technology barriers. Its innovative technology system not only significantly improves the efficiency of project implementation, but also drives the sustainable development of infrastructure construction in extreme environments.
Macroad as an outstanding asphalt plant supplier, understands the engineering characteristics of extreme cold environments. Driven by the upgrading of intelligent management system and the continuous optimization of equipment cold-resistant performance, Macroad series of equipment further optimizes the adaptability to extreme low-temperature environments, and is widely used in the markets of Russia, Kazakhstan and other extreme cold regions. In the face of complex tundra geological conditions, the equipment has demonstrated stable and reliable operation performance, which is highly recognized by international customers and provides strong technical support for infrastructure construction in alpine regions.
Our Equipment Solves Extremely Cold Areas Construction Problems
 |
 |
 |
|---|
1.Material and structural damage due to freeze-thaw cycles
- The vibration motor comes with a heating device to ensure normal operation.
- Belt machine drive adopts motor reducer combination, with cold-resistant cables to ensure the stability of the equipment.
- Electric control cabinet: internal heating device is added, and all external cables adopt the cold-resistant version.
- The touch screen is designed for the extreme cold area, so that its adaptive temperature is not less than -40 °.
- Lubricating oil: all lubricating grease adopts extreme cold configuration to prevent solidification; 2# lithium ester is used for joint parts, and 100# gear oil is used for thin oil lubrication station.
- Specially designed cold-resistant version for equipment rubber products, frequency converter, soft starter and other parts to ensure the stability of the equipment in the low-temperature environment.
- Drying drum, asphalt pipeline, dust collector, hot material bin all the insulation layer increased to 100mm, to ensure that the temperature is up to standard.
- Increase the power of burner to meet the higher heating requirements
2.Equipment stability challenges in low temperature environments
Processing and transmission structure optimization
- Shaft hole processing precision control: adopting high-precision boring machine to process the shaft hole, ensuring the concentricity of the shaft end, reducing bearing wear and prolonging service life.
- Direct connection transmission mode: the mixing drive adopts the motor and reducer directly connected with the big shaft, avoiding the problem of unsynchronization of the traditional chain transmission and reducing the failure rate.
Simplified maintenance of screening and combustion system
- Vibrating screen low-maintenance design: 4-layer double vibrating motor linear screen structure, vibrating motor maintenance cycle extended to 1500 hours, reducing downtime.
- Automatic burner cleaning: equipped with blowing pipeline to prevent clogging of the oil circuit, reducing the frequency of manual cleaning and maintenance costs.
Drive stability and failure prevention
- Worm gear reducer: reverse self-locking function is adopted to prevent material spillage and plate chain damage in case of power failure or malfunction, and improve stability.
- Elastic tensioning device: spring buffer design reduces the risk of wear and breakage of the plate chain and reduces the failure rate.
Metering and proportioning control
- Belt machine frequency conversion coarse proportioning: through the frequency converter to realize the initial coarse metering, reduce the overflow problem caused by the proportioning error, and reduce the cleaning frequency.
3.Conflict between thermal balance and ecological protection
Closed structure and negative pressure dust prevention technology
- Totally enclosed air venting design: The air venting pipe is installed in the outer cover of the screen body, which suppresses dust from escaping through the totally enclosed structure and the negative pressure environment, and eliminates the risk of dust leakage.
- Enhanced dust proof performance: Negative pressure system ensures that the dust always flows to the inside of the hood, avoiding dispersion to the external environment and reducing the risk of pollution.
High-efficiency dust removal equipment configuration
- High-pressure pulse bag filter: Adopting pulse cleaning technology, the filter bag is instantaneously blown by compressed air to realize efficient dust removal and meet the stringent environmental emission standards.
- Environmental compliance guarantee: the dust removal efficiency is stable, effectively avoiding environmental complaints caused by excessive dust.
Core equipment selection guide
Selection of asphalt mixing plant in the cold region should focus on the stability and efficiency of the plant in the low-temperature environment: the core points include strengthening the heating system, reducing the failure rate of key components, optimizing the automation of intelligent control, as well as equipped with a modular design to facilitate rapid transfer and maintenance. At the same time, it is necessary to ensure stable fuel combustion efficiency and take into account the closed dust removal and thermal insulation design.
With stable high capacity and deep heat preservation design, batch mix asphalt mixing plant can meet the needs of large-scale continuous construction in extreme cold areas; mobile asphalt batch plant can flexibly adapt to decentralized construction scenarios through modular vehicle structure and low-temperature-resistant transmission system.
Macroad’s equipment combines intelligent control and optimization of cold-resistant structures to provide reliable solutions for asphalt mix production in extreme cold regions.
 |
 |
 |
|---|---|---|
| ALQ Series | Model | ALYQ series |
| Fixed installation, suitable for long-term stable production | Flexibility | Modular design, support for quick dismantling and transferring |
| 40-320t/h Continuous high output | Production Capacity | 60-160t/h Flexible capacity adjustment |
| Transition cycle of more than one month | Installation Requirements | Transition cycle 7-10 days |
| There are gravity dusting, snail dusting, cyclone dusting, water dusting, bag dusting multiple choices | Environmental Suitability | Gravity de-dusting + bag de-dusting with limited options |
| Low initial investment, high turnaround costs | Investment Costs | High initial investment, low turnaround costs |
Parameter Table
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
|---|---|---|---|---|---|---|---|---|---|
| Output(t/h) | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 240 | 320 |
| Cold Aggregate Feeding System | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 5×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Hopper Capacity(m) | 4*4.5 | 4*6.5 | 4*7.5 | 4*7.5 | 5*7.5 | 5*12 | 5*12 | 5*12 | 6*15 |
| Collect Belt Capacity(t/h) | 60 | 80 | 100 | 120 | 140 | 200 | 220 | 280 | 360 |
| Dryer Size(m) | φ1.2*5.2 | φ1.5*6 | φ1.5*6.7 | φ1.65*7 | φ1.8*8 | φ2.2*9 | φ2.6*9 | φ2.6*9.5 | φ2.8*10.2 |
| Dryer Capacity (t/h) | 60 | 80 | 100 | 120 | 140 | 180 | 240 | 260 | 360 |
| Fuel Max Consumption(kg/h) | 300 | 450 | 550 | 700 | 950 | 1200 | 1400 | 1700 | 2250 |
| Vibrating Screen(Layer) | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 |
| Aggregate Metering hopper(kg) | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Mineral Flour Metering hopper (kg) | 120 | 150 | 200 | 200 | 300 | 300 | 320 | 600 | 700 |
| Bitumen Metering hopper (kg) | 100 | 120 | 150 | 150 | 250 | 250 | 250 | 480 | 500 |
| Weighing accuracy | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% |
| Mixer Capacity(kg) | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Cycle Time(s) | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Dust filter (Bag dust filter) | |||||||||
| Filter Area(m2) | 230 | 300 | 420 | 480 | 550 | 650 | 700 | 1050 | 1350 |
| Draught Fan(kw) | 22 | 30 | 45 | 55 | 90 | 110 | 2*75 | 2*90 | 2*110 |
| Asphalt Temperature (⊥) | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 |
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 |
|---|---|---|---|---|---|
| Output (t/h) | 60 | 80 | 100 | 120 | 160 |
| Hopper Capacity(m) | 4*6.5 | 4*7.5 | 4*7.5 | 4*7.5 | 5*8 |
| Collect Belt Capacity (t/h) | 80 | 100 | 120 | 140 | 180 |
| Dryer Size(m) | φ1.5*6 | φ1.5*6.7 | φ1.65*7 | φ1.8*8 | φ1.9*9 |
| Dryer Capacity(t/h) | 80 | 100 | 120 | 140 | 180 |
| Fuel Max Consumption(kg/h) | 450 | 550 | 700 | 950 | 1200 |
| Mixing Tower（kW） | 54 | 63.5 | 104.5 | 125 | 157.5 |
| Vibrating Screen (Layer) | 4 | 4 | 4 | 4 | 4 |
| Aggregate Metering hopper(kg) | 800 | 1000 | 1300 | 1500 | 2000 |
| Mineral Flour Metering hopper(kg) | 150 | 200 | 200 | 300 | 300 |
| Bitumen Metering hopper(kg) | 120 | 150 | 150 | 250 | 250 |
| Weighing accuracy | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% |
| Mixer Capacity(kg) | 800 | 1200 | 1300 | 1700 | 2200 |
| Cycle Time(s) | 45 | 45 | 45 | 45 | 45 |
| Filter Area(m2) | 370 | 420 | 480 | 510 | 620 |
| Draught Fan (kw) | 30 | 45 | 55 | 90 | 110 |
| Asphalt Temperature (⊥) | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 |
| Total power(kw) | 200 | 300 | 350 | 380 | 490 |
Successful Cases

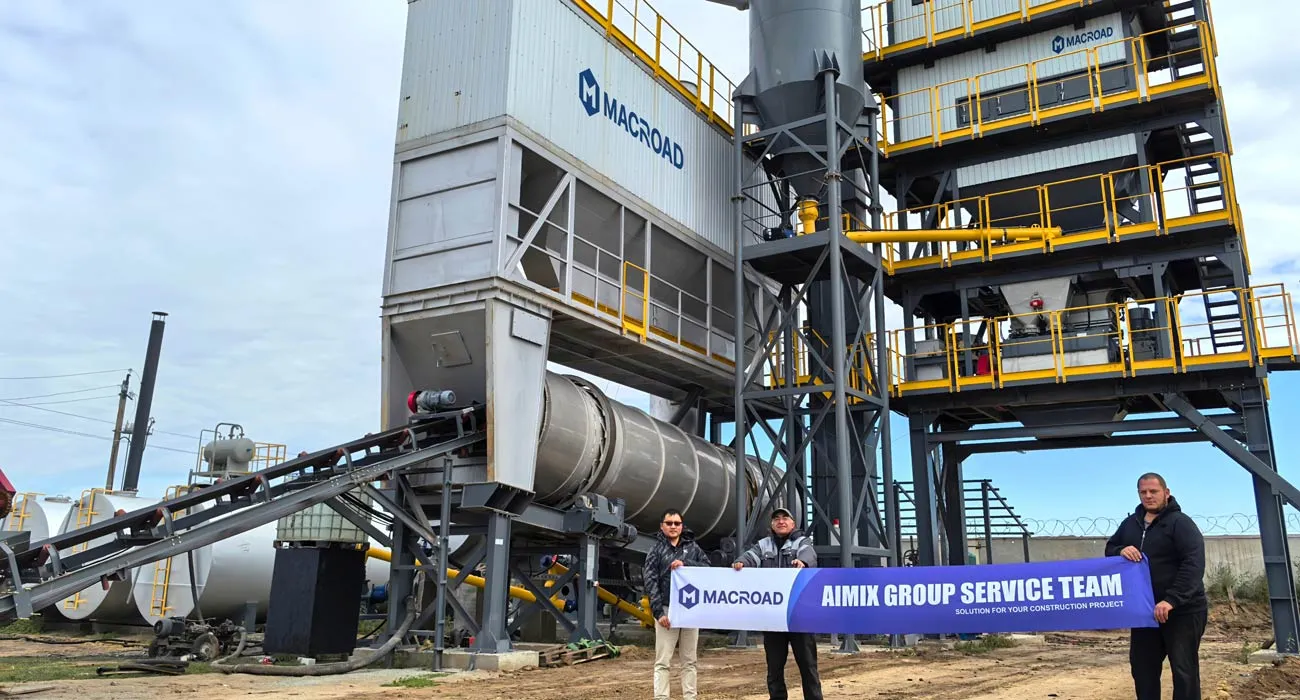

From Installation to Operation: ALQ160 Starts Making Waves in Kazakhstan
- Productivity: 160 t/h
- Project Details: The asphalt mixing plant customized by the customer in Kazakhstan has been formally put into the local road construction project. With continuous and stable production efficiency and excellent quality of finished products, the plant has maintained stable operation in the extremely cold environment, which has strongly guaranteed the project progress on schedule. Feedback from customers shows that the plant has excellent performance in asphalt production. Our company will continue to deepen the research and development of asphalt mixing plant in extreme cold areas and optimize the working conditions, and practice the engineering service concept of “Customer Success First” with technological innovation.

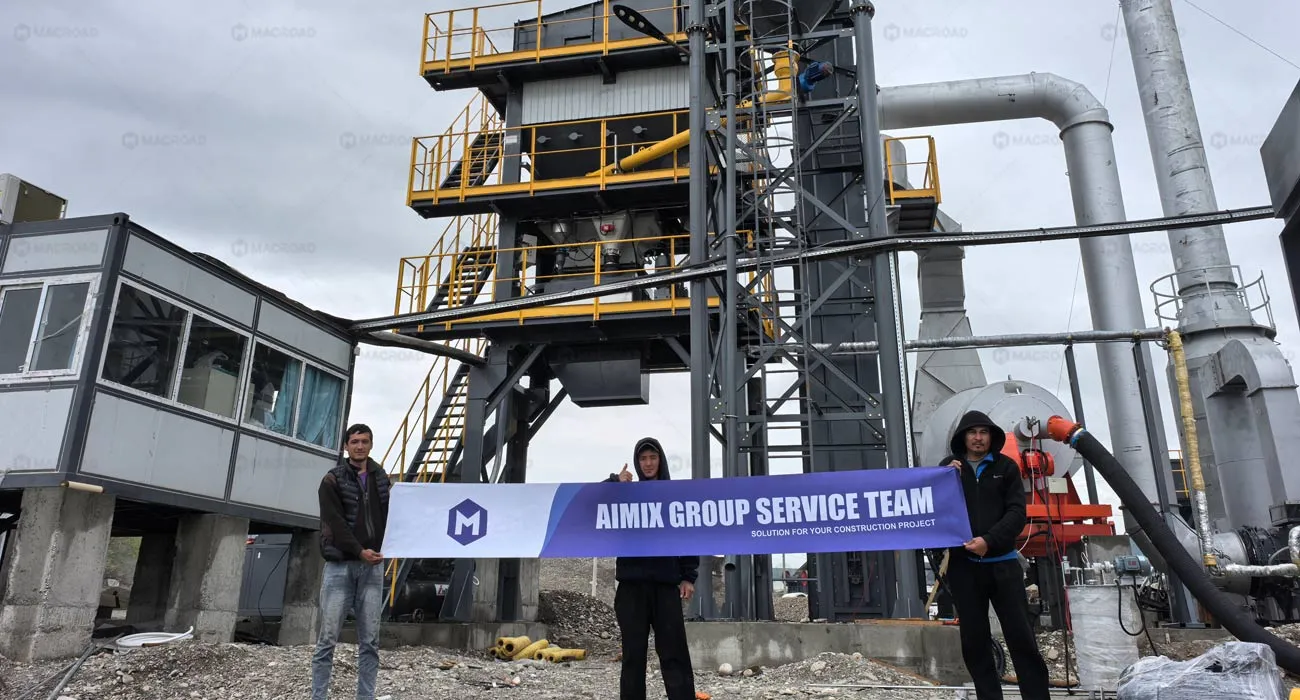

Kyrgyzstan’s Cold-Climate Road Projects Thrive with ALQ100 Asphalt Mixing Plant
- Productivity: 100 t/h
- Site Supervisor’s Account: Site supervisor overseeing a major rural road project, highlighted the plant’s resilience: “The ALQ100 stationary asphalt plant became our trusted ally in the harsh Kyrgyz winter. Its robust build withstood sub-zero conditions without compromising efficiency, and the automated monitoring system alerted us to potential issues well in advance. This proactive approach to maintenance, combined with the plant’s adaptability to fluctuating material inputs, allowed us to complete the project ahead of schedule—no small feat considering the challenging environment. It’s a testament to Macroad’s engineering prowess and customer-centric innovation.”
Customized Engineering Services for Extreme Cold Regions
Our engineering team is deeply committed to the landing of projects in extreme cold environments, providing you with full chain, highly reliable and sustainable solutions:
- In-depth evaluation of site adaptability
- Capacity simulation and low temperature performance verification
- Environmental protection scheme pre-qualification and optimization of low-temperature adaptation
- Cold-resistant equipment configuration and intelligent control upgrade
