Asphalt pavement full service
Asphalt production is mainly divided into two types: raw materials and finished products. Finished products are divided into ordinary mixed materials and modified asphalt, which also determines that different equipment is needed to meet the production of the two materials. Macroad is committed to providing customers with efficient, intelligent and environmentally friendly full-cycle production support.
Five major equipment used in asphalt production
| Equipment Name | Core Features | Output Product | Technical threshold |
|---|---|---|---|
| Asphalt Debarrel Equipment | Heat and melt barreled/solid asphalt and transfer it to asphalt tank | Liquid asphalt (raw material) | Thermal energy control and anti-sticking technology |
| Asphalt Emulsification Equipment | Mix liquid asphalt with water and emulsifier to form an emulsion | Emulsified asphalt (finished product) | Emulsion stability control |
| Modified Asphalt Equipment | Adding modifiers such as rubber, resin, and high molecular polymer to liquid asphalt | Modified asphalt (finished product) | Dispersion uniformity, temperature control accuracy |
| Asphalt Recycling Equipment | Recycling of waste asphalt (RAP) into usable asphalt | Recycled asphalt (raw material/finished product) | Waste sorting and recycling process |
| Asphalt Mixing Plant | Mix aggregate, asphalt and filler in proportion to form asphalt mixture | Asphalt mixture (finished product) | Metering accuracy and thermal efficiency management |
1. Raw material processing stage: asphalt debarreling/recycling equipment

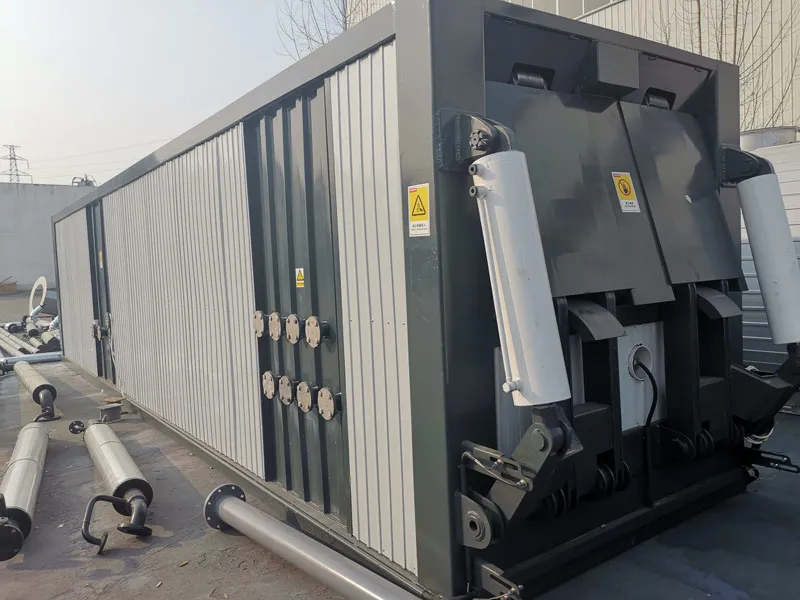

Asphalt debarrel equipment
Asphalt debarreling equipment is the front end of the production line, solving the problem of pretreatment of solid asphalt raw materials.
It only processes the asphalt form conversion (barrel → liquid), without changing the chemical properties of the asphalt.
Asphalt recycling equipment
Asphalt recycling equipment is mainly a circular economy link, processing waste asphalt mixture. The input is RAP (waste mixture) and the output is recycled asphalt raw material.
2. Mixture production stage
Asphalt mixing plant is the ultimate production equipment for asphalt mixture, integrating aggregate, asphalt and filler to produce a solid finished product (asphalt mixture).

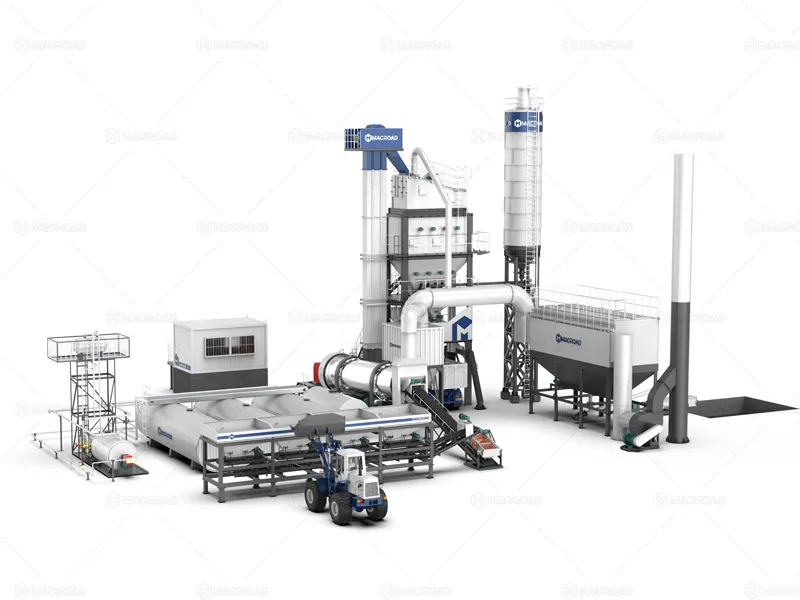

Batch Mix Asphalt Plant
Batch Mix Asphalt Plant: Provides high-quality asphalt, suitable for long-term large-scale production needs.

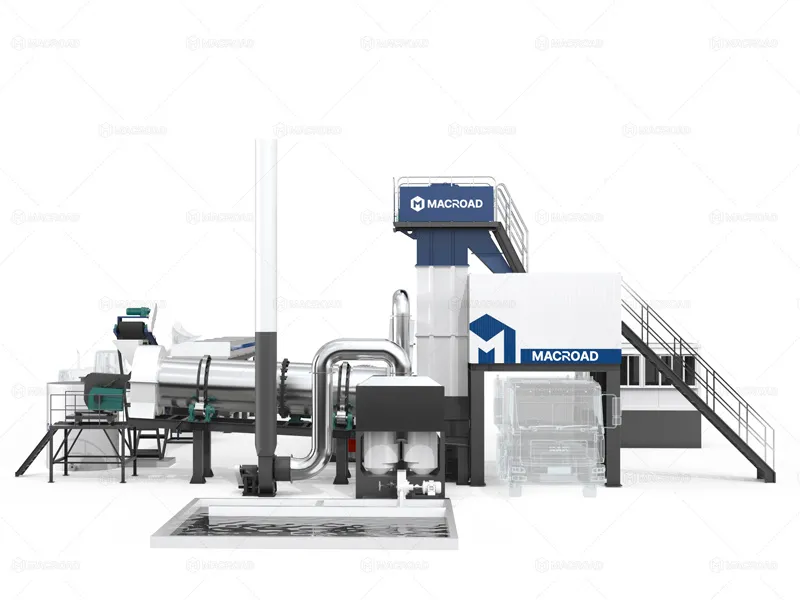

Drum Mix Asphalt Plant
Stable output, drum mix asphalt plant is very suitable for large-scale projects that require a continuous supply of asphalt.
Macroad provides customized solutions to meet diverse construction needs. Our asphalt plants are designed for global customers, integrating advanced technology and modular concepts, suitable for highways, airport roads, municipal roads, rural roads and other scenarios.
Technical advantages
- Accurate ratio: adopt the first error control technology and dynamic precision control secondary metering technology to strictly guarantee the oil-stone ratio and the quality of the finished asphalt
- Intelligent control system: fully automated operation interface, accurate measurement of aggregate, asphalt and additive ratio.
- Environmental protection design: a variety of dust removal schemes to choose from, gravity dust removal, cyclone dust removal, volute dust removal, bag dust removal, water dust removal, to meet your environmental protection needs
- Durable structure: core parts and easily worn parts are structurally optimized to ensure drive stability and fault prevention.
3. Asphalt modification stage

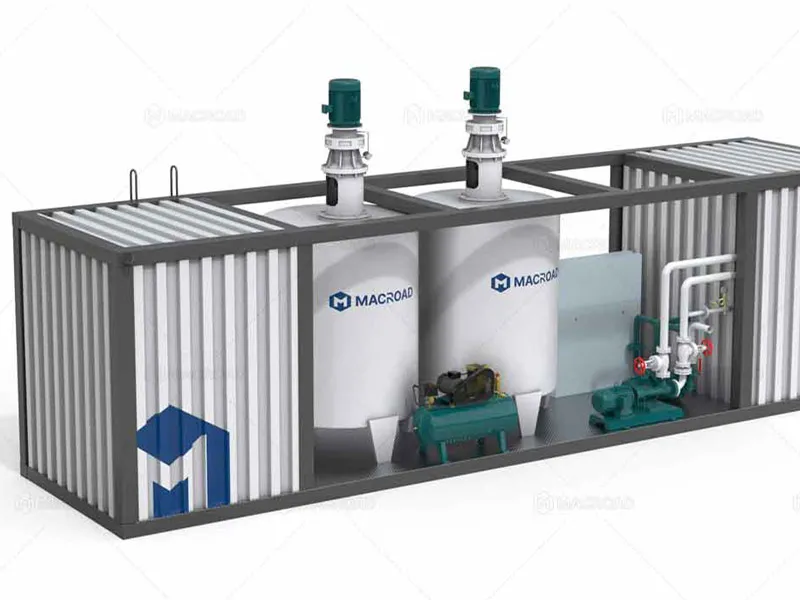

Asphalt emulsification equipment
Asphalt emulsification equipment is the core equipment for producing cold-mix asphalt, suitable for non-high-temperature construction scenarios (such as road maintenance). The product is an oil-in-water emulsion (asphalt content 50%-60%), which requires the addition of stabilizers.

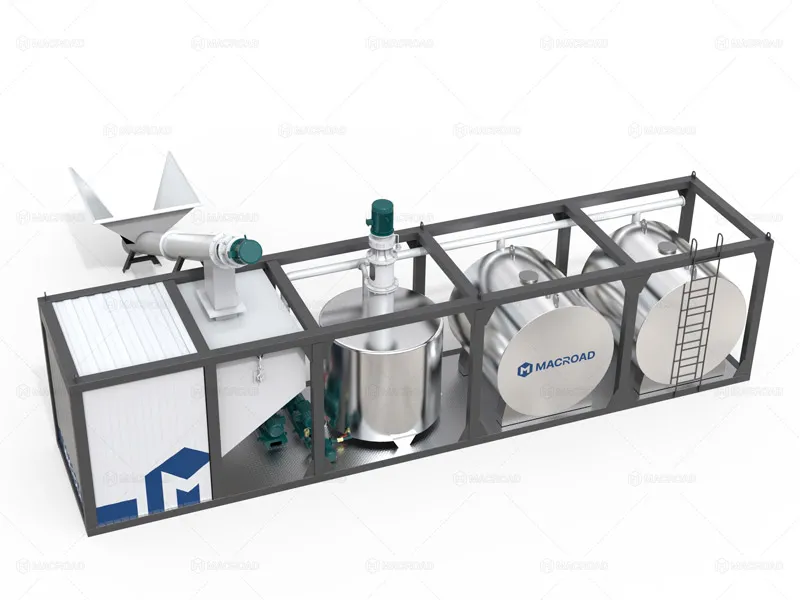

Modified asphalt equipment
Modified asphalt production equipment is mainly used to improve asphalt performance (such as anti-rutting and anti-fatigue) and is used for high-grade roads. The molecular structure of asphalt is changed through physical/chemical modification (such as SBS modification requires twin-screw extrusion).
How Macroad solves the technical barriers
Technical barriers to asphalt debarreling equipment: high temperature carbonization protection
Macroad Solution
- Multi-stage intelligent temperature control system: Using PID+fuzzy control algorithm, dynamically adjust the heating power according to the viscosity of asphalt (120-150℃ precise temperature control); Built-in infrared thermal imager to monitor the state of asphalt in the barrel in real time to prevent local overheating and carbonization
- Patented anti-stick wall design: The stirring blade adopts Teflon coating + spiral guide structure to reduce asphalt residue (residue ≤ 0.1%); The surface of the heating tube is nickel-plated, and the high temperature oxidation life is increased by 3 times
- Synergistic value with the mixing station: The discharge port of the barrel removal equipment is directly connected to the storage bin of the mixing station to reduce intermediate transportation losses (efficiency increased by 15%); Made with MES system, real-time synchronization of barrel removal progress and mixing station production plan
Technical barriers to asphalt recycling equipment: RAP material separation efficiency
Macroad solution
- Microwave-hot air composite regeneration technology: The microwave generator (frequency 915MHz) penetrates the RAP material and softens the asphalt binder; The hot air circulation system (300℃ constant temperature) realizes the rapid separation of aggregate and asphalt
- Intelligent sorting control system: The X-ray diffractometer detects the gradation of RAP material online and automatically adjusts the microwave power (accuracy ±2%); The separation efficiency of the spiral separator is ≥95%, and the penetration recovery rate of recycled asphalt reaches 90%
- Synergistic value with the mixing station: The recycled asphalt is directly transported to the metering bin of the mixing station to avoid secondary pollution (water content ≤0.5%); Provide RAP material blending ratio optimization algorithm (maximum blending amount can reach 50%)
Technical barriers of asphalt mixing plants: metering accuracy and dust removal efficiency
Macroad solution
- Quadruple measurement and calibration system
- Aggregate silo: laser scanning + gravity sensor double calibration (error ≤ 0.3%)
- Asphalt silo: Coriolis mass flowmeter (accuracy ± 0.2%)
- Mineral powder silo: spiral weighing module (resolution 0.1kg/h)
- Pulse dust removal matrix
- Bag dust collector (filtration accuracy 0.3μm) + cyclone separator combined design
- Real-time monitoring of emission concentration (PM2.5 ≤ 8mg/m³, exceeding the national standard by 50%)
Technical barriers to asphalt emulsification equipment: synergistic control of emulsifiers
Macroad solution
- Dynamic shear rate control system
- Infinitely adjustable colloid mill speed (2000-12000rpm), matching different modifier types
- PID closed-loop control for emulsifier addition (concentration fluctuation ≤0.5%)
- Nano-level homogenization technology
- Three-stage homogenization valve group (working pressure 40MPa) to achieve asphalt particle size ≤3μm
- Online laser particle size analyzer real-time feedback adjustment (response time <1 second)
Technical barriers to modified asphalt equipment: modifier dispersion uniformity
Macroad solution
- Two-stage dispersion system
- First stage: twin-screw extruder (shear rate ≥ 10000s⁻¹) forced dispersion
- Second stage: multi-stage static mixer (turbulence intensity ≥ 3000s⁻¹) uniform mixing
- Online torque monitoring system
- High-precision torque sensor (accuracy ±0.1%FS) real-time feedback on dispersion effect
- Automatic compensation mechanism: automatic adjustment of screw speed when torque is abnormal
- Synergistic value with mixing station
- Provide optimal dosage algorithm of SBS modifier (based on local climate data)
Why choose us – Global service network only for customer success
- Site adaptability assessment: Based on a comprehensive analysis of geological stability, drainage design and traffic conditions, high-altitude areas more than 500 meters away from residential areas and on the leeward side of the dominant wind are preferred.
- Capacity simulation verification: By simulating production data under different working conditions, verify whether the equipment configuration meets the mixture demand during the construction period.
- Environmental protection plan pre-examination: The pre-examination must cover the bag dust removal system, asphalt fume purification device and three-stage sedimentation tank design to ensure that wastewater and waste gas meet the standards.
- Equipment configuration optimization suggestions: According to the location of the project, provide personalized and professional equipment to ensure stable operation of the equipment.
- Quick response: Establish a 7*24-hour remote diagnosis system, combined with spare parts library and emergency response process to ensure that faults are eliminated as soon as possible and the equipment runs smoothly.
- Five local service centers：5 LBS centers in Indonesia, Malaysia, Russia, Uzbekistan and Philippines. Provide customers with the most thoughtful service
90% of asphalt production problems are essentially caused by incorrect equipment selection. Are you still troubled by the difficulty in selection? Contact us quickly, not only to buy equipment, but also to get a trustworthy global partner.
Inquire now and start a new chapter of efficient, low-carbon and intelligent asphalt production!
