Asphalt Plants in Pakistan

Intelligent Operation, Efficient Production

Strategic Partner of Fortune Global 500 Companies

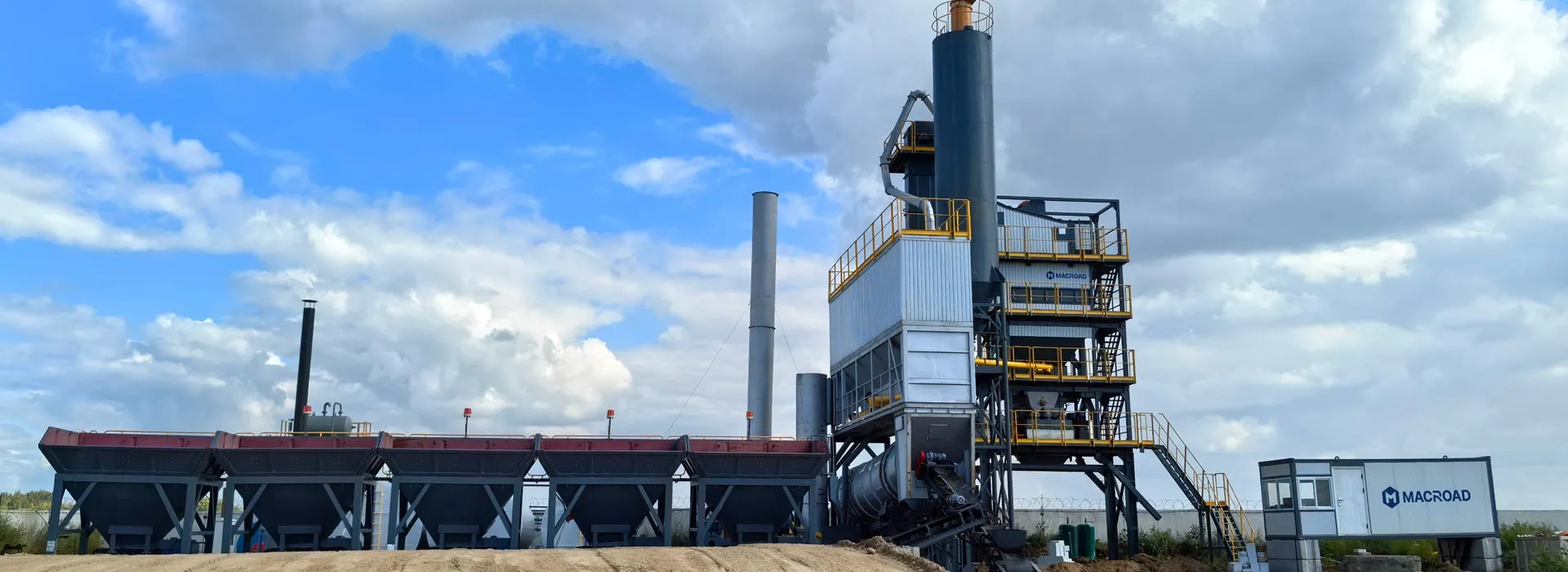

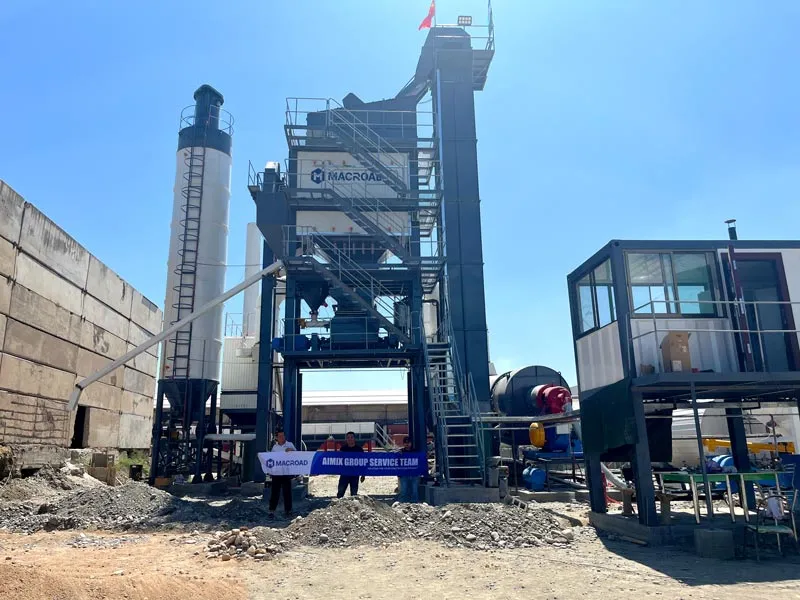

Macroad Asphalt Plant in Pakistan

In the 2024 Cape Province Expressway Project, a contractor ignored high temperature adaptability in pursuit of low procurement costs, resulting in frequent failures of the asphalt plants in pakistan hydraulic system in the hot summer, a total of 216 hours of downtime, direct losses of more than $100,000, and a high fine for project delays. This is not an isolated case, but a microcosm of the current problems facing the Pakistani infrastructure market.

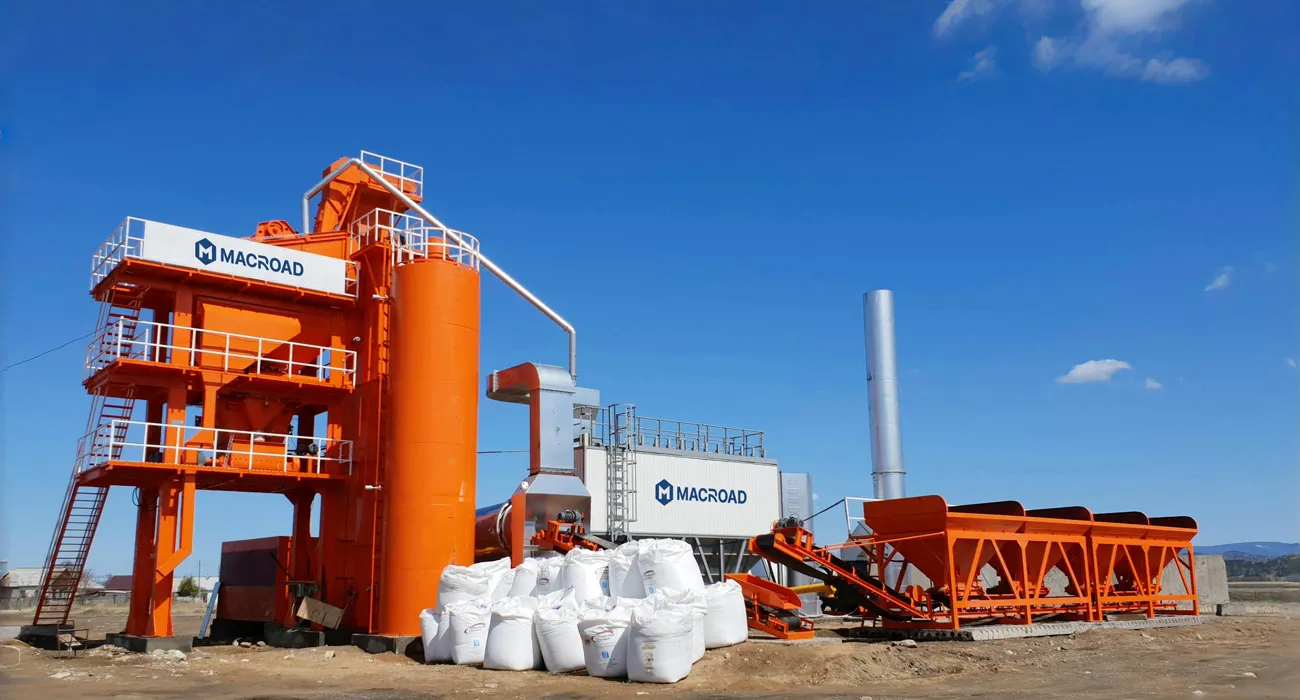

asphalt plant for sale in Pakistan

Against the backdrop of the continued advancement of China-Pakistan cooperation under the Belt and Road Initiative, asphalt mixing plants are not only a competition for equipment procurement, but also a competition for full life cycle benefits, project safety and policy adaptation. To stand out in the competition, we must first see clearly the three unique asphalt plants in pakistan working conditions challenges in Pakistan.

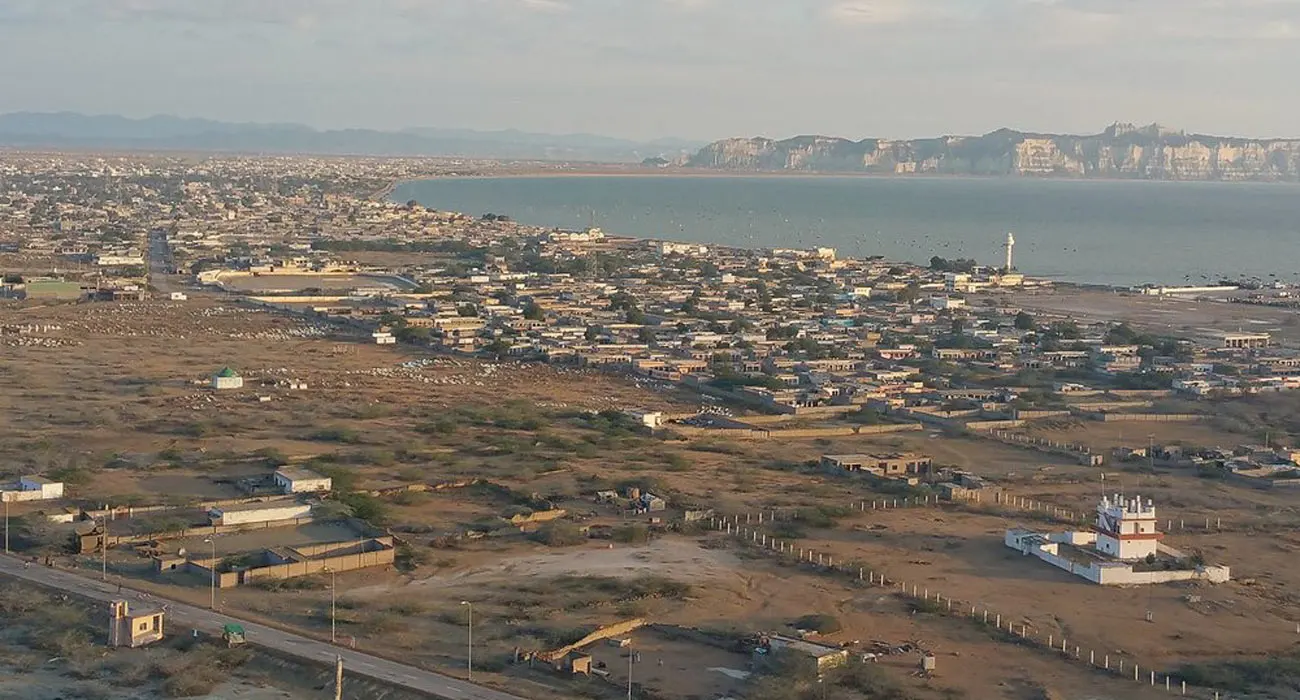

Three core working condition challenges for asphalt plant in pakistan

High temperature test: loss and rework in an environment exceeding 45℃

In coastal cities such as Karachi, the summer temperature can easily exceed 45℃. At this time, the probability of failure of the hydraulic system of traditional asphalt plant in karachi increases by 30%, the temperature fluctuation of asphalt mixture can reach ±15℃, and the rework rate of the paving layer increases by 40%. This hidden loss directly pushes up labor and material costs, often resulting in additional costs of more than US$500,000.

Dusty working conditions: Challenges of dust control and environmental compliance

In projects in the Thar Desert and its surrounding areas, conventional asphalt plant in pakistan dust removal equipment is prone to 50% efficiency loss due to dust accumulation. Environmental acceptance usually requires 2-3 rounds of rectification, each delay of 4-6 weeks, and the rectification cost accounts for 8%-12% of the total project cost. If the standards are not met in time, not only will the fines be high, but the work may also be directly stopped and delivery will be affected.

Site transfer and power fluctuations: Dual pressures of efficiency and stability

Multi-site operations in places such as Gwadar Port require frequent site transfers, and the cost of a single site transfer for traditional asphalt plant in pakistan exceeds US$20,000; in Punjab Province, the voltage fluctuations of the power grid are significant, and the equipment downtime rate has increased by 25%, resulting in an annual capacity loss of 15%-20%. This has forced more investors and contractors to shift from a single initial price orientation to a full life cycle value orientation, emphasizing equipment stability, maintenance convenience and energy-saving benefits.

Therefore, more and more investors and contractors have begun to shift from a single initial cost orientation to a full life cycle value orientation, paying more attention to the stability, maintenance convenience and mobility of equipment.

Four major technical innovations of Macroad for asphalt plant in Pakistan

As mentioned above, only by truly understanding the local working conditions and making targeted optimizations at the technical level can we ensure that the asphalt plant is not just adapting in vain, but can achieve long-term stable operation. For this reason, Macroad has made system-level improvements to the asphalt plant in pakistan. The following are Macroad’s improvements to the equipment. This is our guarantee for the asphalt mixing plant and our commitment to our customers.

Operating system of asphalt plant equipment

High temperature adaptation: full-link design from material curtain to protection

  • IOT monitoring: Realize real-time monitoring of key components, dynamically adjust load and temperature, and avoid sudden overheating.
  • Special blade design: The blades inside the drying drum form a uniform material curtain to improve heat exchange efficiency.
  • High temperature resistant structure: δ12 boiler plate cylinder is automatically welded, and the blades are made of wear-resistant and high temperature resistant steel plates. The deformation of the cylinder is reduced by 30% under high temperature for a long time.
  • Over-temperature shutdown and cold air valve: Multi-level safety protection prevents overheating and burning of bags, ensuring stable production in high temperature seasons.

Efficient dust removal: dual guarantee of graded recycling + intelligent dust cleaning

  • Multi-stage dust removal system: the efficiency of the first-stage cyclone dust removal is 30% higher than that of gravity dust removal, which significantly reduces the bag load; the second-stage bag dust collector (such as the ALQ80 asphalt plants bag area of 384㎡) accurately recycles dust by graded dust. The dust removal efficiency can reach 99%
  • High-pressure pulse dust cleaning: more thorough dust cleaning, the service life of the bag is extended by 40%, and the dust removal efficiency can reach up to 99%.
  • Dust recycling: maximize the utilization of raw materials, while avoiding delays in construction due to environmental protection re-inspections.

Transfer optimization: 48-hour transfer, water, electricity and gas quick-plug module

  • Modular cold material supply system:asphalt plants in pakistan with standard section casing, material collection belt integrated frame structure, easy to disassemble and assemble quickly.
  • Quick-plug pipeline: water, electricity and gas interfaces are all quick-plug, and transfer can be completed within 48 hours.
  • Mobility of chassis: reduce foundation construction by 50%, and lightweight design reduces transfer transportation costs.

Easy maintenance: intelligent early warning + long-life core parts

  • Predictive maintenance: IOT platform combined with big data analysis reduces 30% of unplanned downtime.
  • Maintenance-free and long-life components: The vibrating screen motor is maintenance-free for 2000 hours, the blade liner can be replaced for 5 consecutive years, and the core structure can stably discharge more than 1 million tons.
  • Safe self-locking: The drive device adopts Boneng worm gear reducer to prevent power failure and sudden spillage.
  • Unique burner purge pipeline: automatic anti-blocking, eliminating the need for frequent manual cleaning of the spray gun.

How to match asphalt plant in Pakistan for different projects

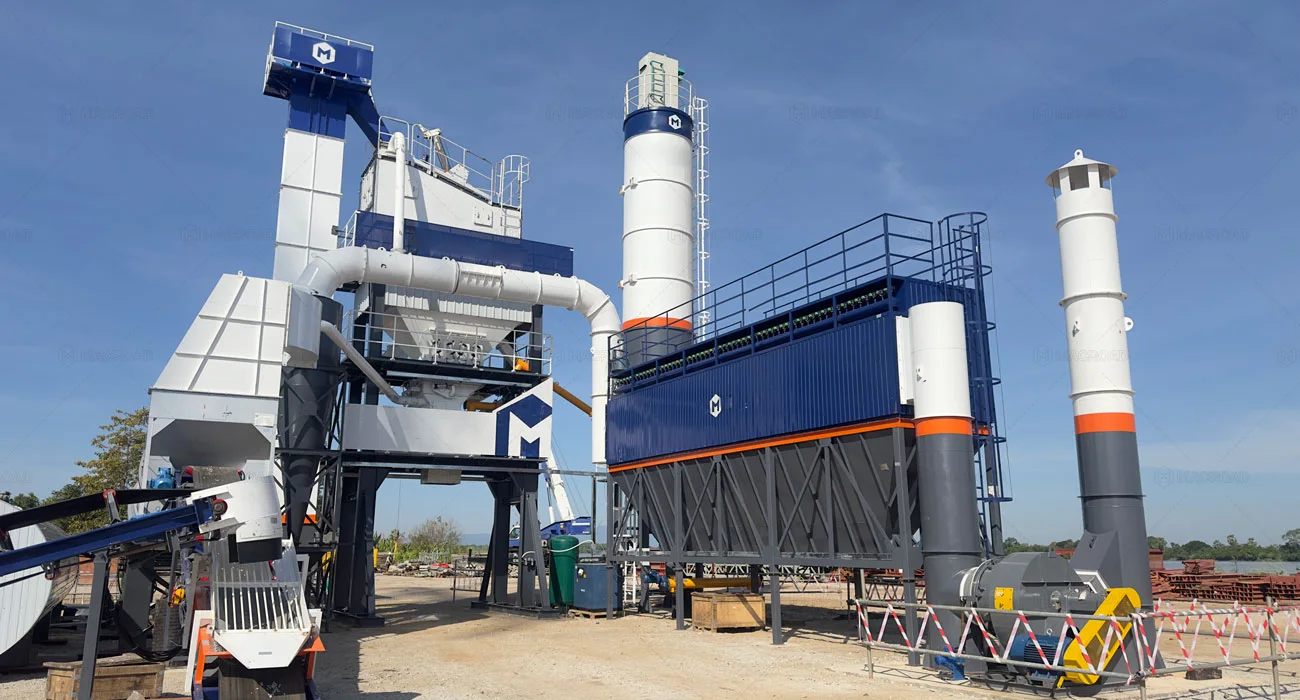

Stationary asphalt plant in Pakistan

Stationary asphalt plant for sale in pakistan can be said to be the cornerstone of quality and capacity of large projects. It is the best choice for highway/municipal projects with large demand for asphalt, long project cycle and annual capacity exceeding 100,000 tons. This stationary asphalt mixing plant is suitable for projects with annual capacity exceeding 100,000 tons and cycle ≥ 2 years, such as Cape Province Expressway and Punjab Province Municipal Pipeline Network.

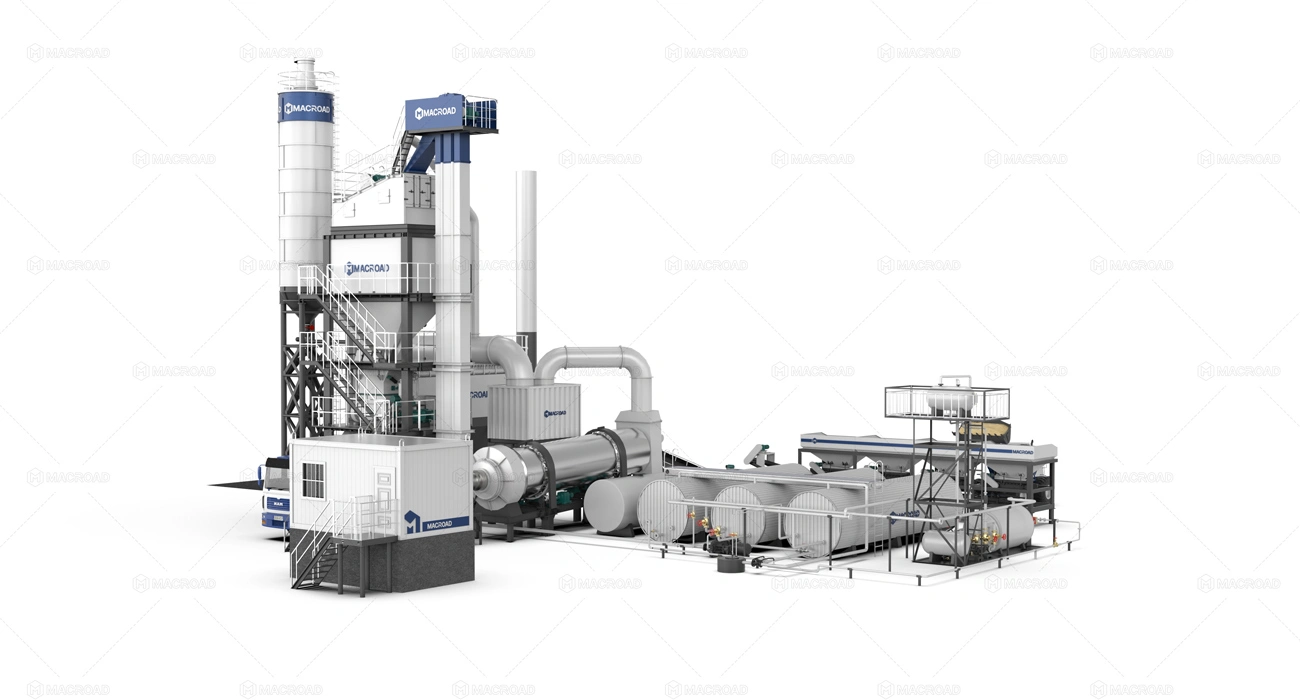

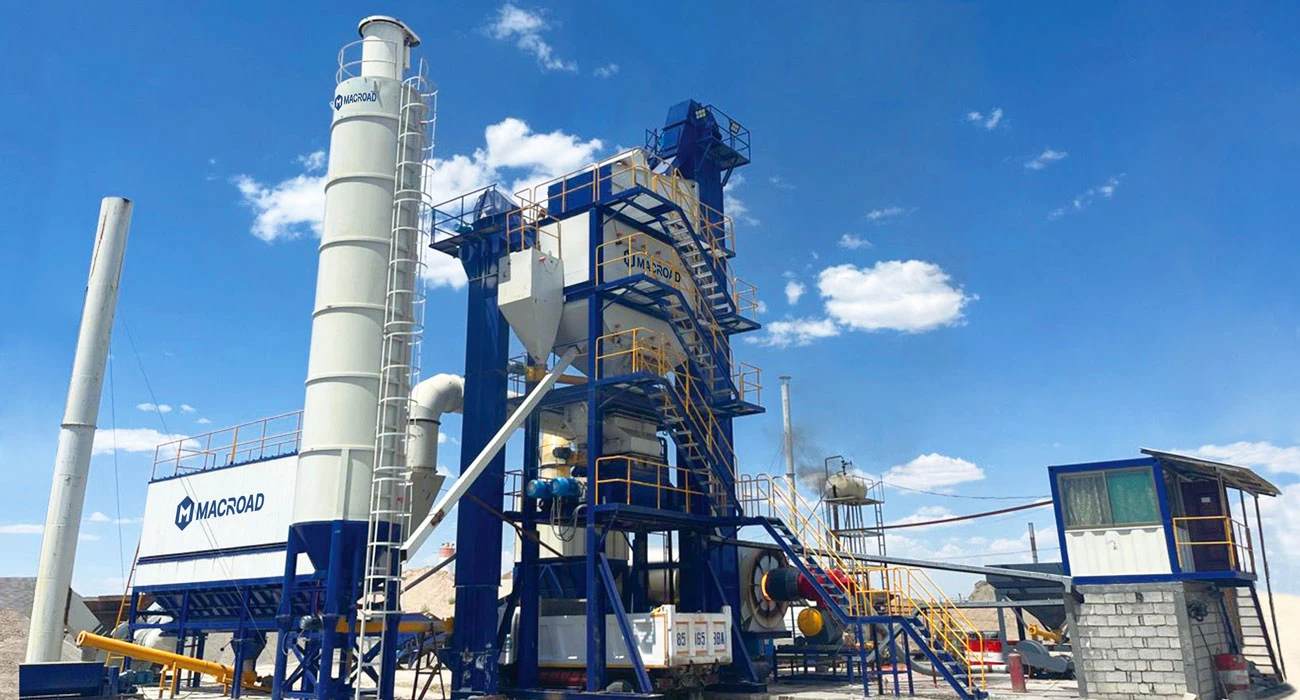

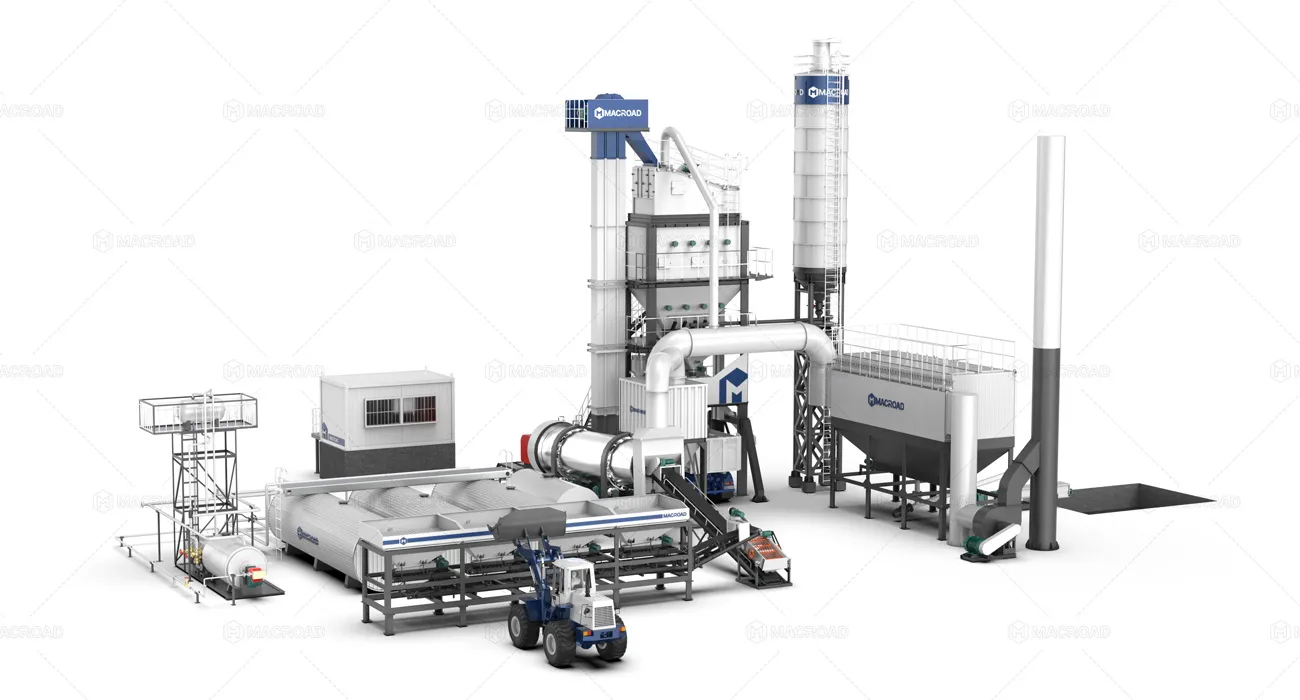

ALQ series asphalt plant equipment in the Pakistan

ALQ series

  • Capacity: 40-320tph
  • Vibrating Screen (Layer): 4-6layers
  • Total Power: 170kw-865kw
  • Cycle Time: 45s

ModelALQ40ALQ60ALQ80ALQ100ALQ120ALQ160ALQ200ALQ240ALQ320
Output(t/h)406080100120160200240320
Cold Aggregate Feeding System4×4.5m³4×6.5m³4×8m³4×8m³5×9m³5×12m³5×12m³5×12m³6×15m³
Hopper Capacity(m)4*4.54*6.54*84*85*95*125*125*126*15
Collect Belt Capacity(t/h)6080100120140200220280360
Dryer Size(m)φ1.2*5.2φ1.5*6φ1.5*6.7φ1.65*7φ1.8*8φ2.2*9φ2.6*9φ2.6*9.5φ2.8*10.2
Dryer Capacity (t/h)6080100120140180240260360
Fuel Max Consumption(kg/h)3004505507009501200140017002250
Vibrating Screen(Layer)444445556
Aggregate Metering hopper(kg)5008001000125015002000250030004000
Mineral Flour Metering hopper (kg)120150200200300300320600700
Bitumen Metering hopper (kg)100120150150250250250480500
Weighing accuracyaggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%
Mixer Capacity(kg)5008001000125015002000250030004000
Cycle Time(s)454545454545454545
Dust filter (Bag dust filter)
Filter Area(m2) 23030042048055065070010501350
Draught Fan(kw)22304555901102*752*902*110
Asphalt Temperature (⊥)140-180140-180140-180140-180140-180140-180140-180140-180140-180

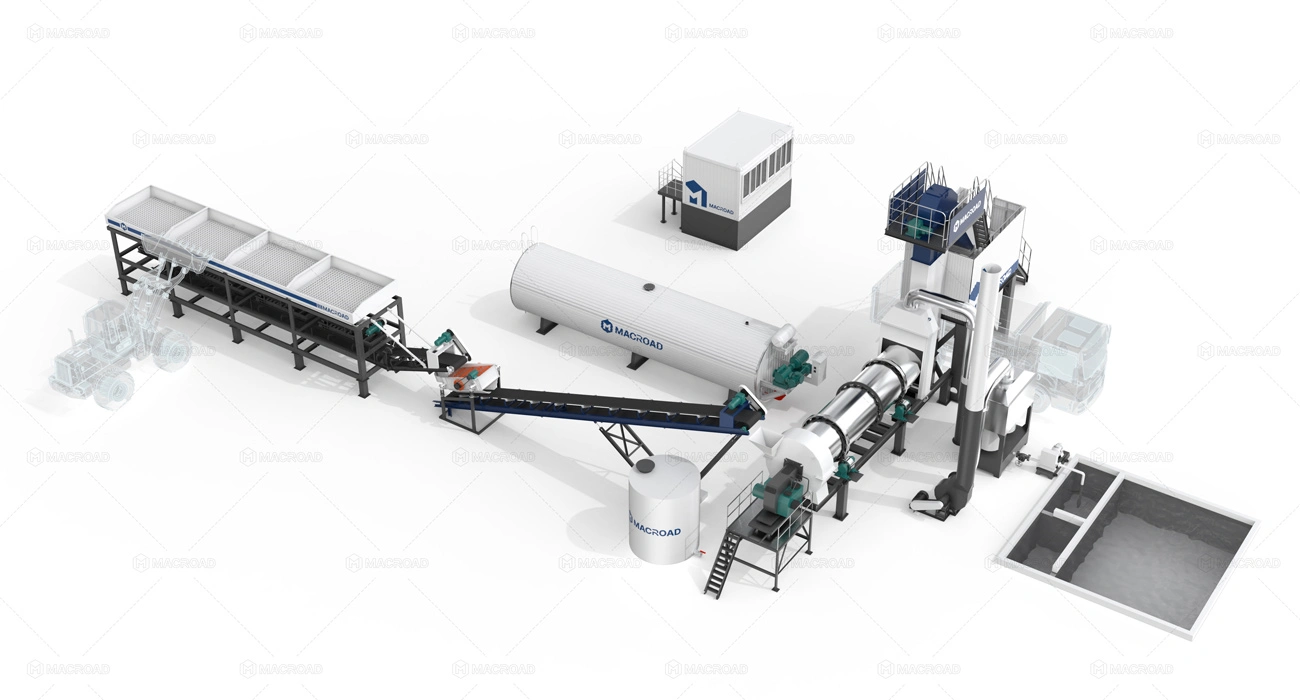

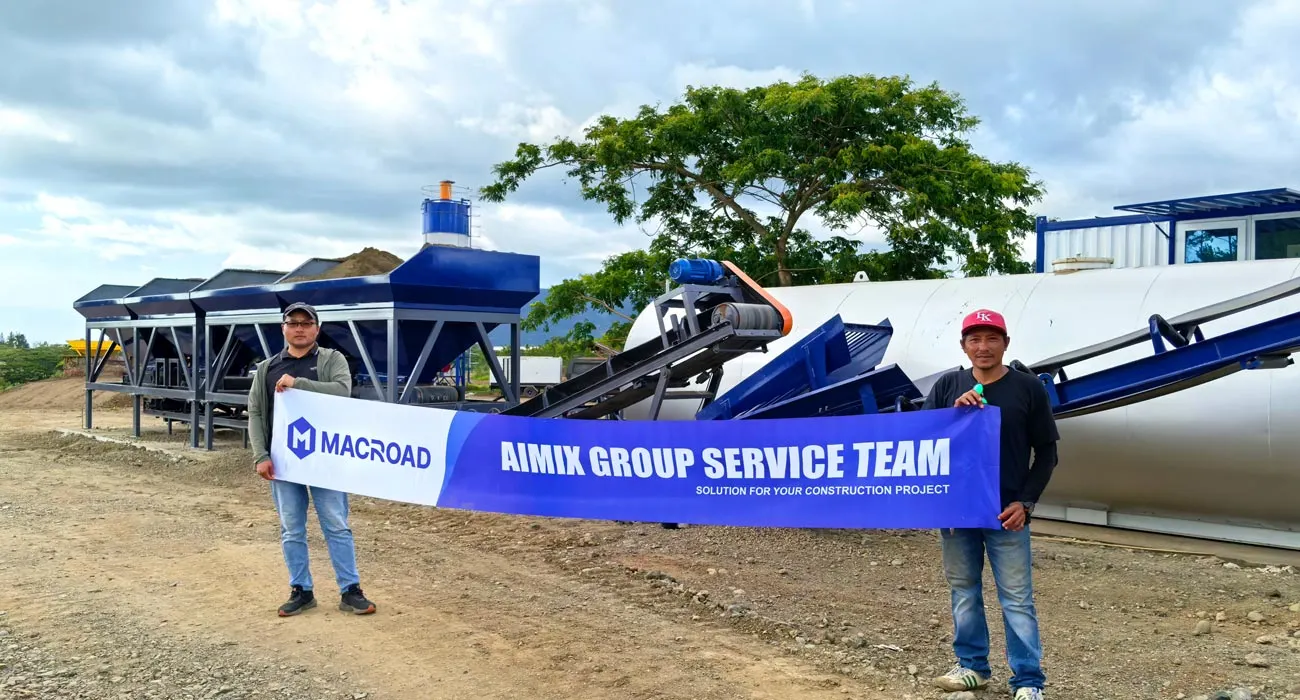

ALT series asphalt plant equipment in the Pakistan

ALT series

  • Capacity: 20-100tph
  • Finished Product Hopper: 3-9t
  • Fuel consumption: 13-15kg/t
  • Asphalt Temperature: 120-180 ℃

ModelALT20ALT40ALT60ALT80ALT100
Output (t/h)20406080100
Power Fuel Oil(kw)3465105135170
Power Burning Coal (kw)4075120165200
Cold Aggregate Feeding System3.5m3*14m3*44m3*46.5m3*46.5m3*4
Finihnsed Asphalt Storage Bin (t)33779
Asphalt Temperature (℃)120-180120-180120-180120-180120-180
Fuel Consumption
Fuel Ol (kg/t)
5-7.55-7.55-7.55-7.55-7.5
Fuel Consumption
Buning Coal(kg/t)
13-1513-1513-1513-1513-15
Asphalt Tank (t)1020303035
Control Room(m)2.22.2333.5
Option: Bag Dust FilterBag Dust FilterBag Dust FilterBag Dust FilterBag Dust FilterBag Dust Filter

Mobile asphalt plant in Pakistan

Different from stationary asphalt mixing plant, mobile asphalt plant for sale can be said to be an efficiency revolution in fragmented construction: it has excellent performance in projects such as rural roads/port projects with multiple construction sites and tight construction period. It is suitable for projects with tight construction period and frequent relocation such as Gwadar Port and rural roads in Sindh Province.

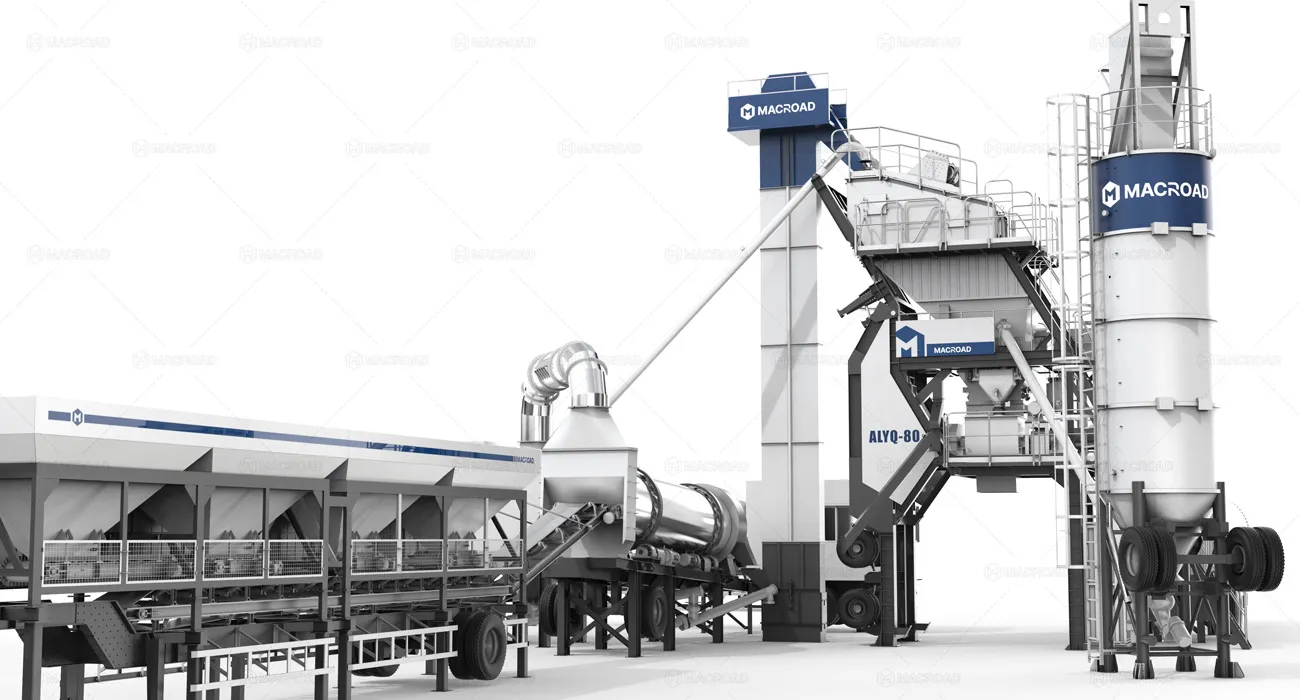

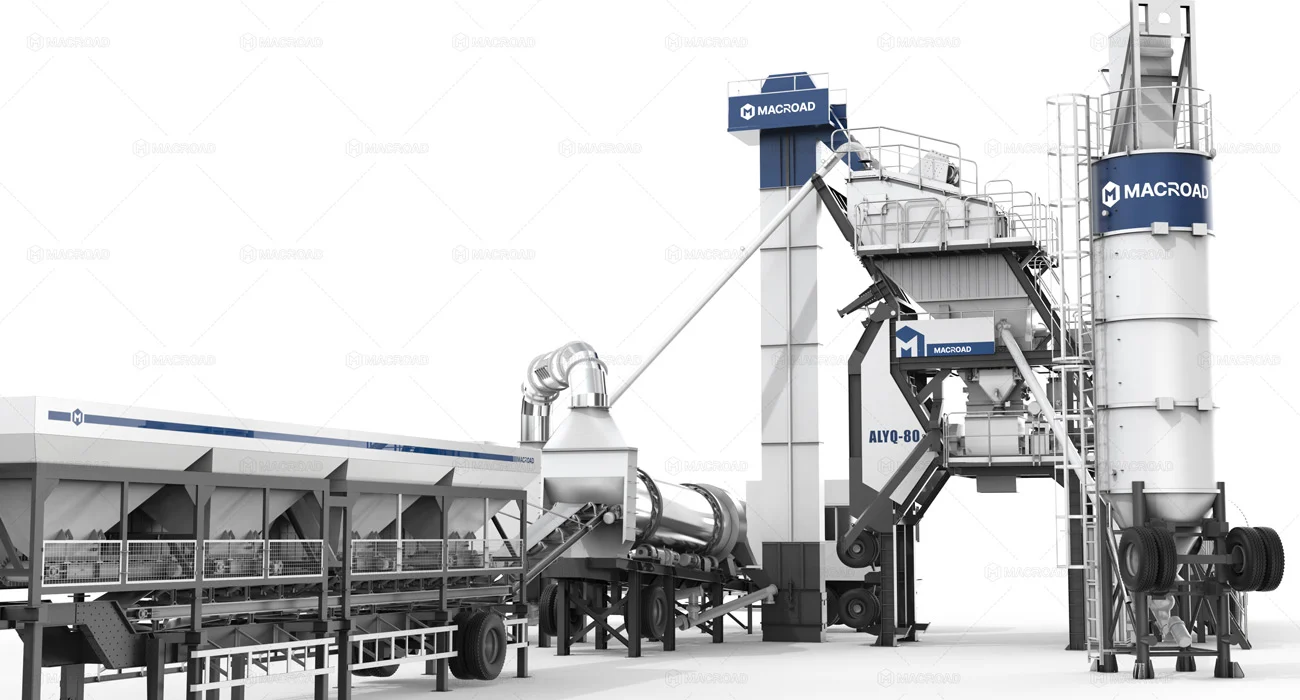

ALYQ series asphalt plant equipment in the Pakistan

ALYQ series

  • Production Capacity: 40-120 t/h
  • Mixing Cycle: 45s
  • Asphalt Temperature: 120-180 ℃
  • Dust filter: Gravity/Cyclone/Bag/Water dust filter

ModelALYQ60ALYQ80ALYQ100ALYQ120
Output (t/h)6080100120
Hopper Capacity(m)4*6.54*7.54*7.54*7.5
Collect Belt Capacity (t/h)80100120140
Dryer Size(m)φ1.5*6φ1.5*6.7φ1.65*7φ1.8*8
Dryer Capacity(t/h)80100120140
Fuel Max Consumption(kg/h)450550700950
Mixing Tower(kW)5463.5104.5125
Vibrating Screen (Layer)4444
Aggregate Metering hopper(kg)800100013001500
Mineral Flour Metering hopper(kg)150200200300
Bitumen Metering hopper(kg)120150150250
Weighing accuracyaggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25%
Mixer Capacity(kg)800120013001700
Cycle Time(s)45454545
Filter Area(m2)370420480510
Draught Fan (kw)30455590
Asphalt Temperature (⊥)140-180140-180140-180140-180
Total power(kw)200300350380

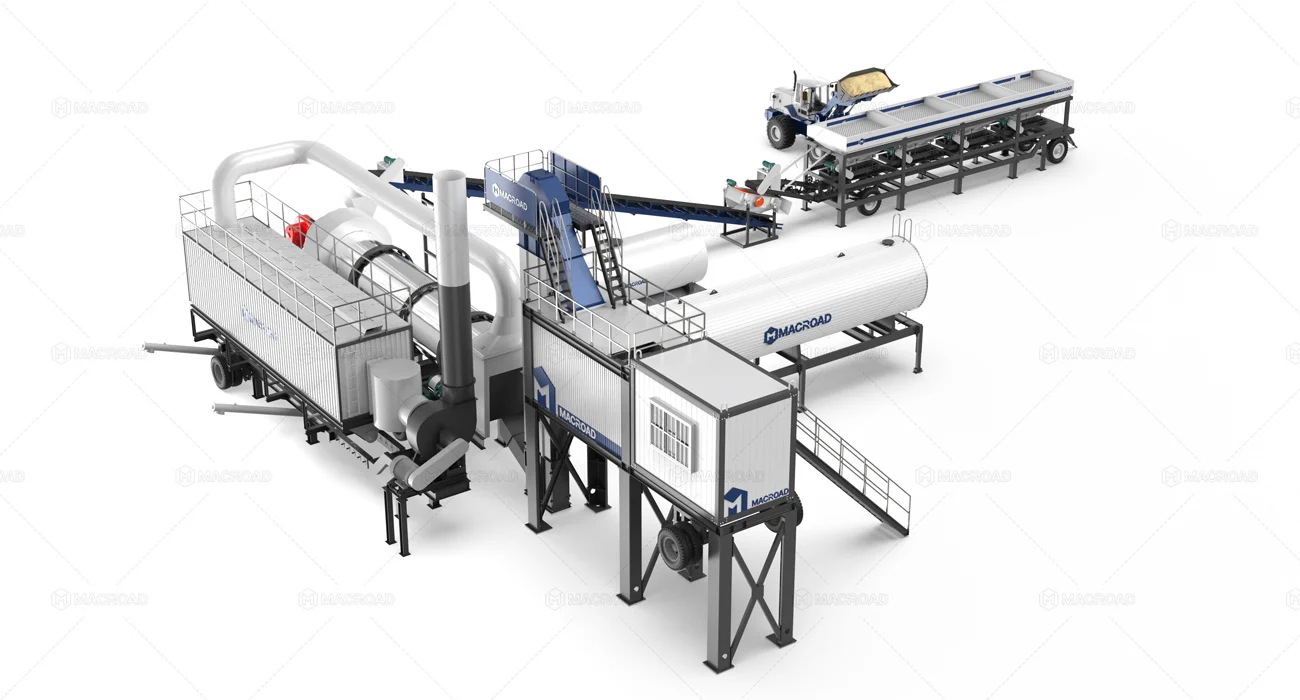

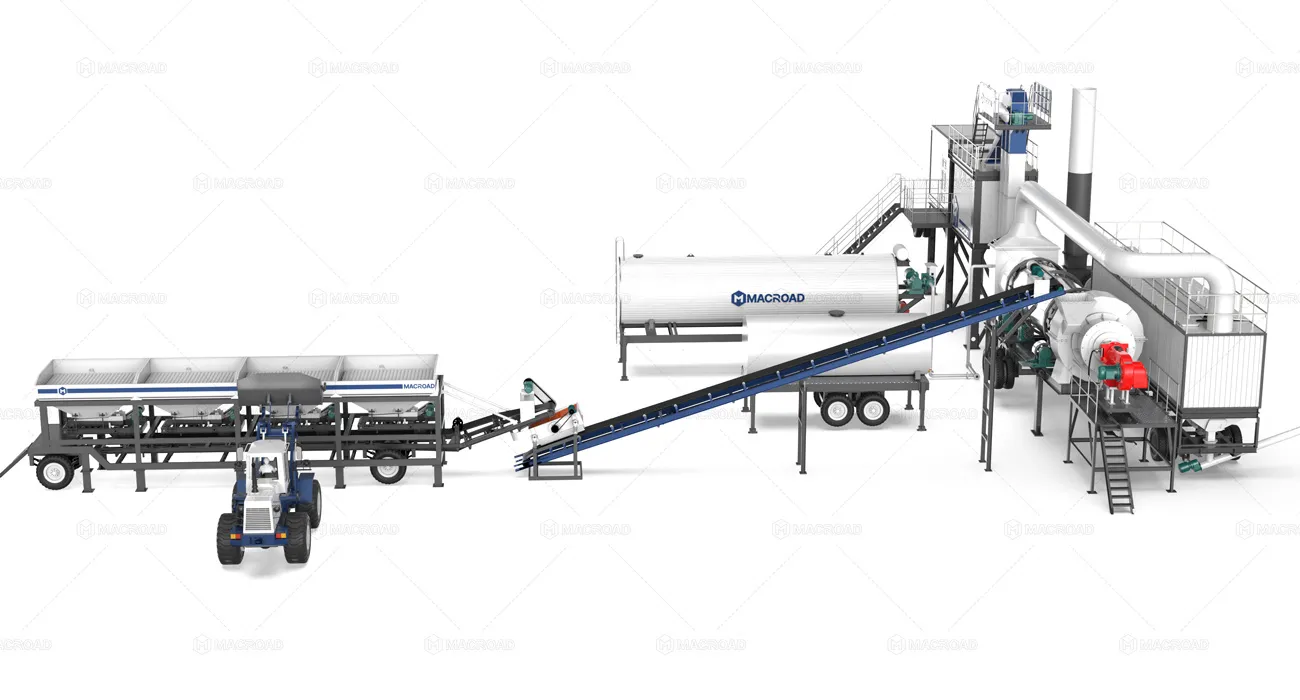

ALYT series asphalt plant equipment in the Pakistan

ALYT series

  • Production Capacity: 20-120 t/h
  • Asphalt Temperature: 120-180 ℃
  • Fuel Consumption: Petrol(5-7.5kg/t)/Burning coal(13-15kg/t)
  • Dust filter: Bag/Water dust filter

ModelALYT20ALYT40ALYT60ALYT80ALYT100
Output (t/h)20406080100
Power Fuel Oil(kw)3465105135170
Power Burning Coal (kw)4075120165200
Cold Aggregate Feeding System3.5m3*14m3*44m3*46.5m3*46.5m3*4
Finihnsed Asphalt Storage Bin (t)22.54.557
Asphalt Temperature (℃)120-180120-180120-180120-180120-180
Fuel Consumption
Fuel Ol (kg/t)
5-7.55-7.55-7.55-7.55-7.5
Fuel Consumption
Buning Coal(kg/t)
13-1513-1513-1513-1513-15
Asphalt Tank (t)1020303035
Control Room(m)2.22.2333.5
Optionbag dust collector / water dust collectorbag dust collector / water dust collectorbag dust collector / water dust collectorbag dust collector / water dust collectorbag dust collector / water dust collector

Macroad Asphalt Plant Global Projects

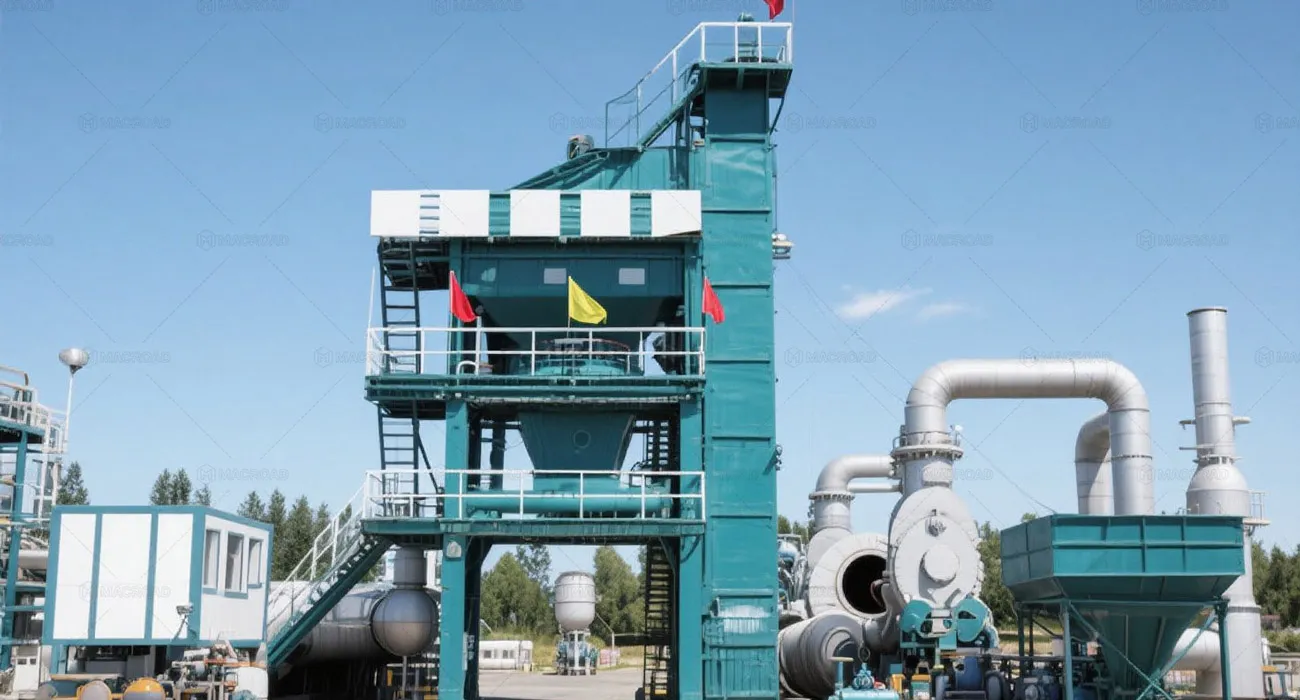

Pasiktan’s ALQ160 stationary asphalt plant Drives Large-Scale Infrastructure with 160 th High-Capacity Production

Pasiktan’s ALQ160 Drives Large-Scale Infrastructure with 120 t/h High-Capacity Production

  • Cycle Time: 45s
  • Project Manager’s View: The ALQ160 asphalt plant in pakistan delivers 120 t/h for Pasiktan’s coastal roads, with its dual-shaft mixer cutting batching errors by 15%. “Auto-moisture compensation reduces fuel use by 18% in monsoons,” says PM Hadi Suryanto. Its dust collector balances productivity and environmental standards.

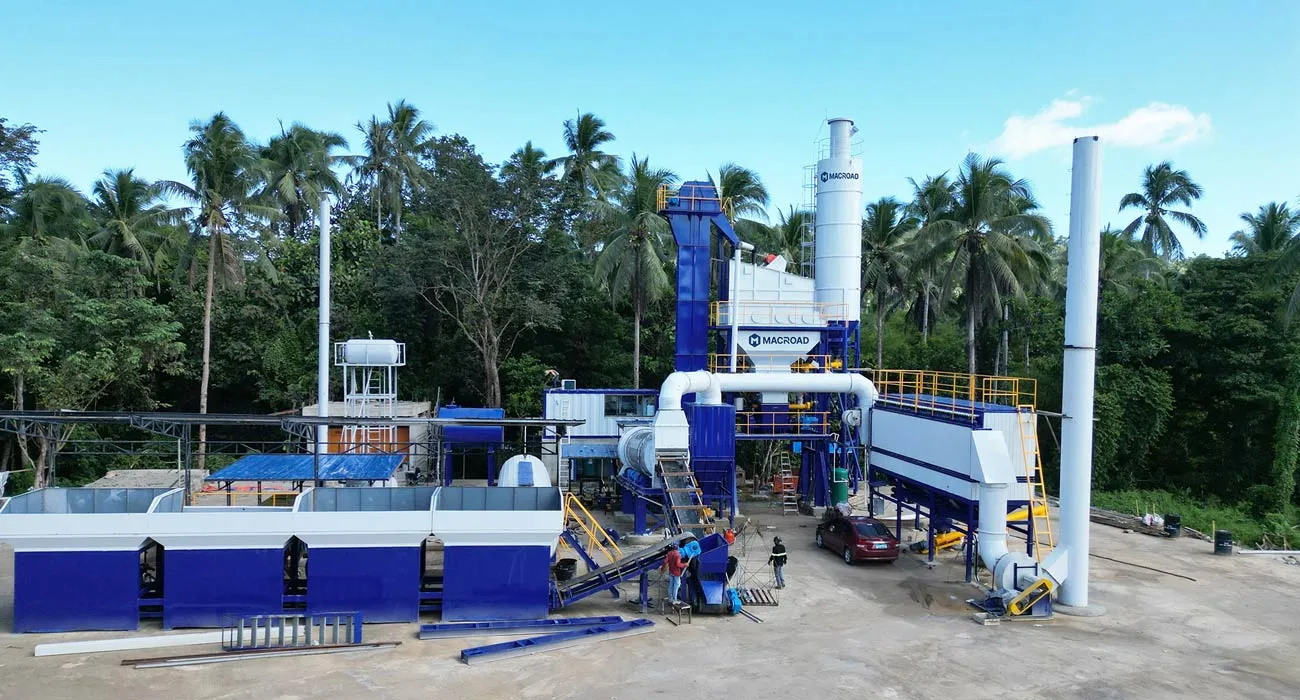

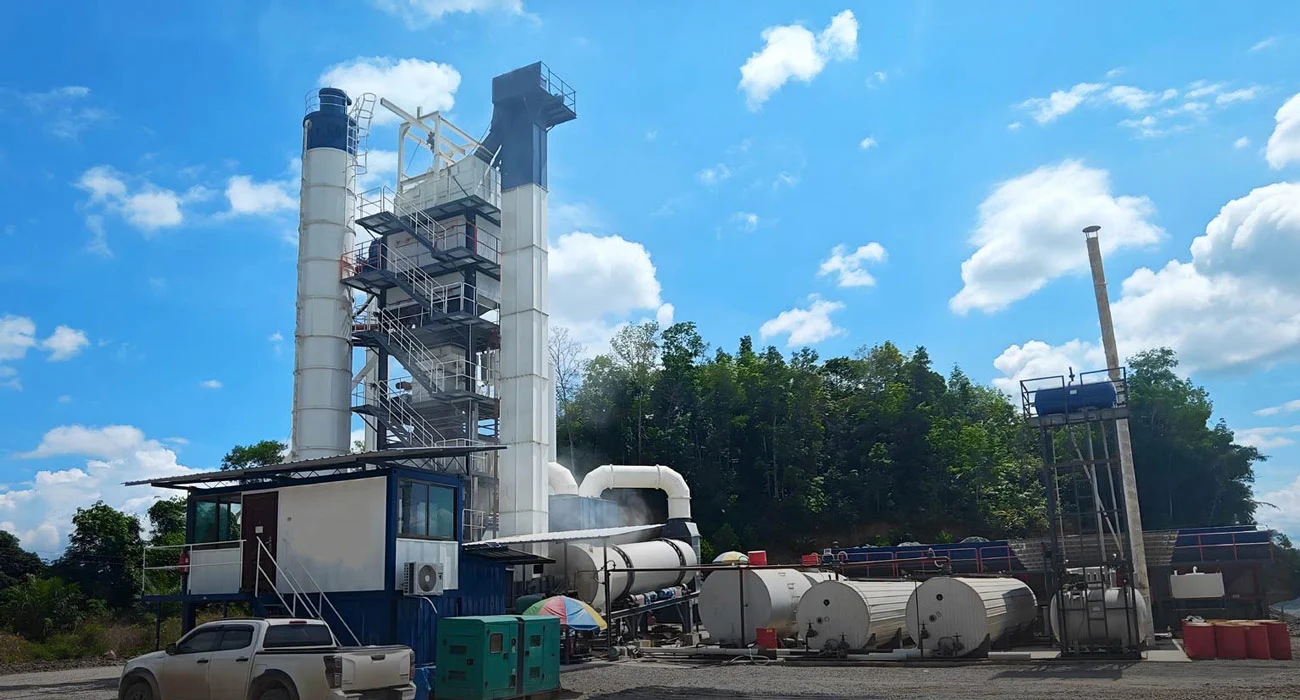

Malaysia's ALQ120 asphalt batch mix plant Boosts Urban Builds with Service Promise

Malaysia’s ALQ120 Boosts Urban Builds with Service Promise

  • Capacity: 120tph
  • Client Rep’s Testimonial: As repeat users, we trust the ALQ120’s 120 t/h consistency. Macroad’s 24-hr response cut downtime, and pre-assembled modules slashed installation by 30%. “±0.3% asphalt ratio accuracy meets our city road specs,” says Azizah Binti Omar.

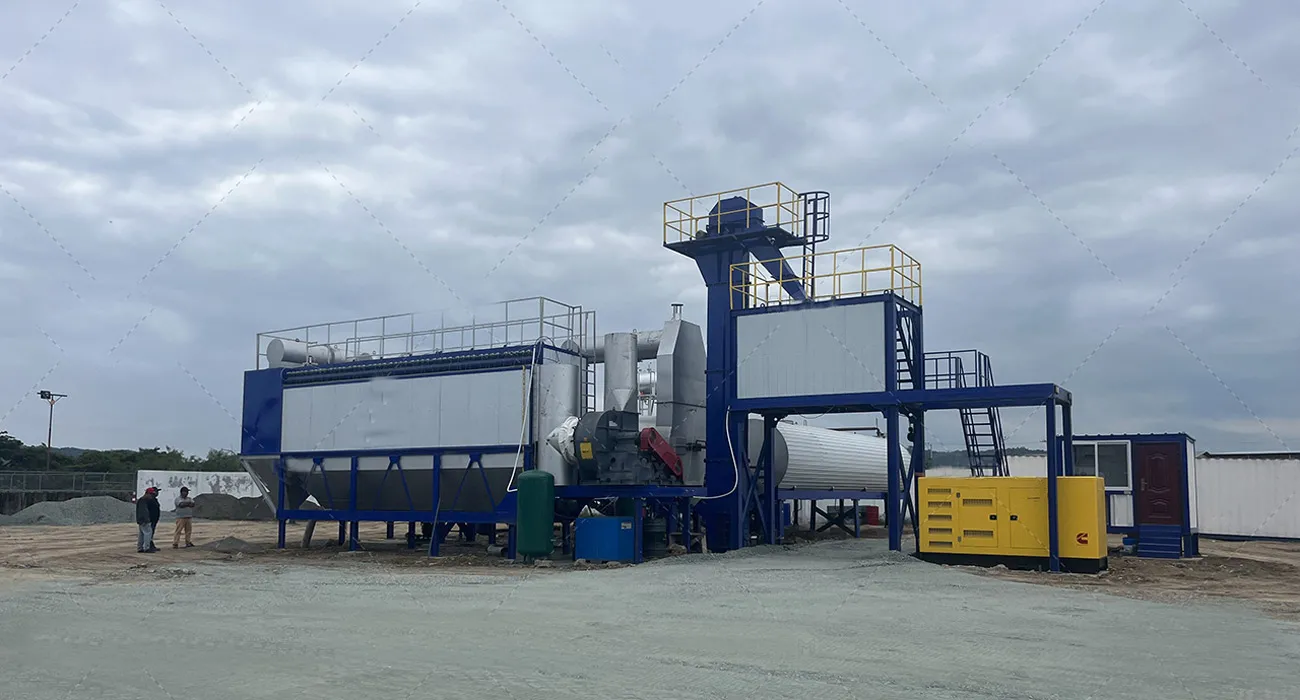

Ecuador ALYT100 Mobile Asphalt Plant Conquers Remote Sites in 48 Hrs

Ecuador’s ALYT100 Mobile Asphalt Plant Conquers Remote Sites in 48 Hrs

  • Capacity: 100tph
  • Engineer’s Tech Take: The ALYT100 drum mix plant‘s hydraulic fold cuts transport width by 40%, enabling 8-hr setup in Ecuador’s Andes. “Anti-vibration mounts extend component life by 25%,” notes Engr. Carlos Mena. Its adaptive heat exchanger maintains 95% efficiency at 2,000m altitude.

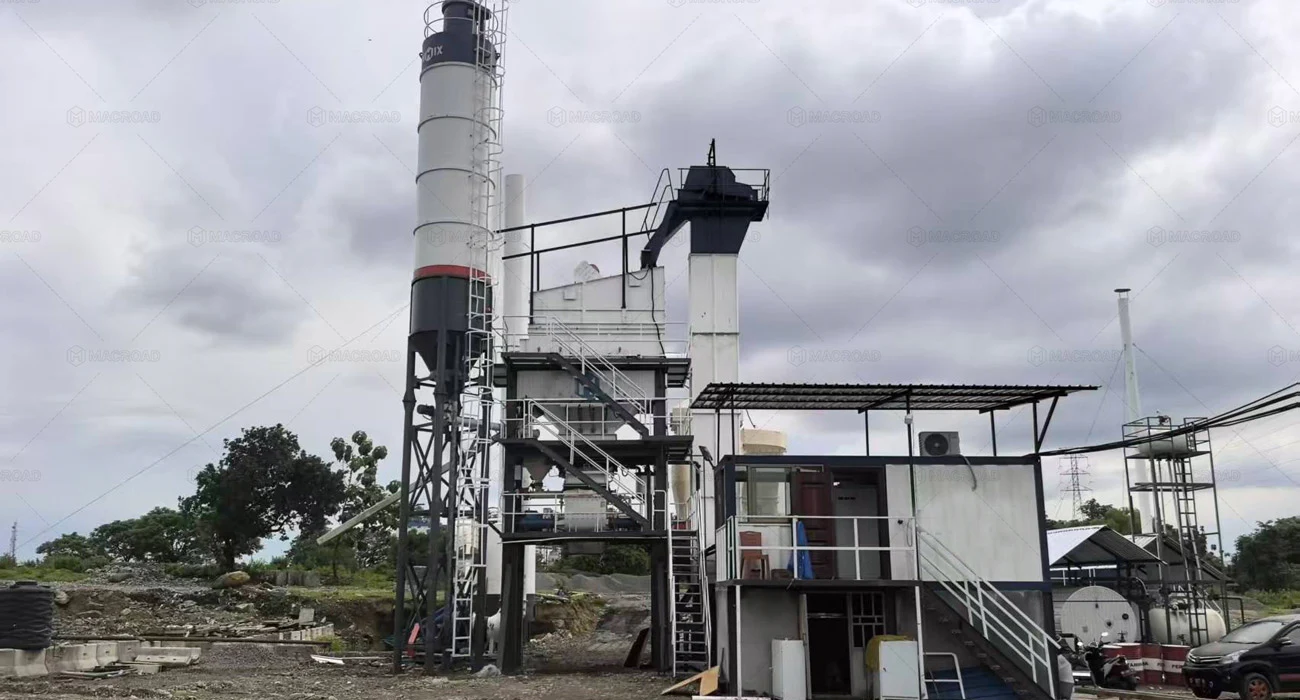

Philippine ALQ80 asphalt plant Enhances Road Quality with 22% Mix Consistency Gain

Philippine ALQ80 Enhances Road Quality with 22% Mix Consistency Gain

  • Capacity: 80tph
  • QC Manager’s Report: The ALQ80 batch mix asphalt plant‘s weighing system boosts mix consistency by 22% in Luzon’s provinces. “Auto-drop compensation cuts rejections by 30%,” says QC Manager Liza Santos. Its dust collector meets our requested standard, with 98.7% particulate capture.

ROI cycle calculation: rational deduction of the entire chain from cost to recovery

When many Pakistani customers first learned about our equipment, the most common question they raised was: “The initial investment is large, can I really get my money back? If the asphalt plants in pakistan breaks down after two years of use, won’t I lose all my money?” This concern is very normal and very realistic. Based on actual project data in Pakistan, we have made detailed payback cycle calculations to help customers see the relationship between asphalt plant cost and return more clearly.

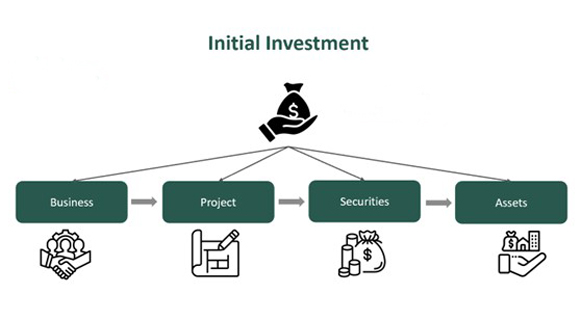

Initial investment: not just the equipment cost, but the system cost of the whole process delivery

Many customers only see the price of the machine, but ignore the real start-up cost of the project. Take ALQ100 as an example:

  • The purchase asphalt plant price in pakistan is about $420,000;
  • Add transportation customs clearance, import tax, site construction (such as material yard foundation, tank area hardening), hoisting, installation and commissioning, technical training, etc., the total is about $180,000 – $280,000 (different port tax rates and site conditions will fluctuate slightly);

Therefore, the overall initial investment of the project is in the range of $600,000 – $700,000.

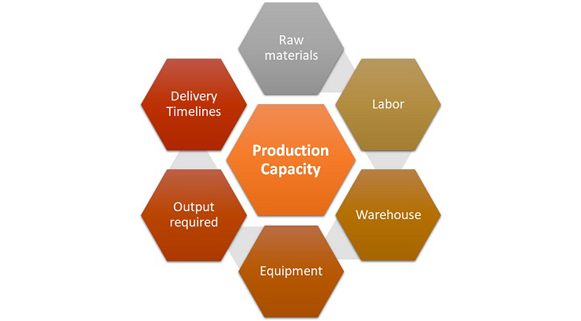

Stable capacity model: the real output value after reasonable discount

Many manufacturers claim that the asphalt plant in pakistan can produce more than 800 tons per day, which is indeed possible under ideal conditions. However, in the actual operation of the Pakistan project, for a safer estimate:

  • Considering power grid fluctuations, material delivery rhythm, seasonal rainfall and holiday shutdowns, a conservative value of 600-700 tons/day is more reasonable.
  • If the monthly operation is 25-28 days, the monthly output is about 18,000-20,000 tons.

Based on the average price of NHA project $60-65/ton, the monthly operating income is: $1,080,000 – $1,300,000

Comparison of operating costs: Hidden advantages brought by lower downtime and maintenance

Although the initial investment of Macroad asphalt plant in pakistan is relatively high, the hidden costs saved in the long-term operation stage are extremely considerable, mainly reflected in:

  • Less unplanned downtime: Intelligent monitoring and high-temperature resistant cylinder and wear-resistant lining design reduce the average annual downtime by 20-30% compared with common brands in the market, directly increasing annual production capacity.
  • Environmental compliance avoids large-scale rectification: Cyclone + large-area bag double-stage dust removal, emissions are 30% better than Pakistan EPA standards, avoiding multiple rectifications (each rectification usually requires 4-6 weeks of downtime + material rectification costs, accounting for about 8%-12% of the project cost).
  • Labor and energy savings: Automatic batching, combustion adaptive control, and one-button start and stop reduce at least 1.5 operators, saving more than $20,000 in labor costs annually; PLC can avoid the peak period of the power grid, and the annual electricity bill can be saved by 10%-15%.

These are not cash flows directly reflected in the monthly accounts, but from the perspective of the entire life cycle, they can significantly shorten the investment recovery time.

Payback period calculation: 12-15 months to meet the target

Under this conservative capacity and better operating model:

  • Monthly net cash flow (excluding fuel, labor, electricity, material shortage and minor maintenance) is about $40,000-$55,000.
  • The corresponding payback period is 12-15 months.

Compared with some cheap asphalt plant in pakistan at the beginning, the actual payback period is extended to 16-20 months due to frequent failures and repeated environmental rectification. Moreover, when the work is stopped, the owner often faces a penalty for breach of contract or needs to purchase outsourced asphalt at a high price to ensure the construction period, which increases the expenditure.

Therefore, it is normal for you to have doubts about “whether the equipment is too expensive to make back the profit”, but through detailed data, you can see that: stable monthly production capacity and sales, combined with operation and maintenance savings, and avoidance of major invisible costs caused by environmental protection shutdowns, together allow the equipment to recover all investment in less than a year, and contribute to your net profit in the future.

30-day rapid production for asphalt plant in Pakistan

Many customers will say: “It all seems to be just no real talk until you actually see the asphalt plant in pakistan in use.”In order to give you a more intuitive understanding of the landing process that the Macroad equipment will go through if it arrives at your project site, the following is a detailed restoration for you in stages based on our standard delivery process for multiple projects around the world.

Macroad team for asphalt plant in Pakistan

Macroad professional engineering team for asphalt plant in Pakistan

Day 1-10: Modular transportation & lightweight installation

The asphalt hot mix plant is transported in 40-foot containers (not disassembled in parts). It only takes 3 days to complete customs clearance and land transportation after arriving at the port. Relying on modular design on site, the lifting of core components such as cold material bin, drying drum, hot material elevator, etc. can be completed within 10 days, and the civil construction period is shortened by 40% compared with the conventional solution. The specific implementation includes:

  • Accurate positioning of seven modules such as cold material supply system, drying drum, mixing main building, etc. according to the process;
  • Synchronize the systematic connection of pipeline network (oil circuit/gas circuit) and intelligent sensor (level meter/temperature probe);
  • The electronic control system uses prefabricated cable interface, and the communication connection between the operation room console and the whole field asphalt plant in pakistan is completed within 1 day, and the network monitoring module is deployed simultaneously (if the project is optional).

Day 11-20: Localized debugging and skills empowerment

Macroad as standard asphalt mixing plant supplier will dispatch professional technicians to the site to provide comprehensive guidance on installation and debugging, and conduct on-site training for operators, covering the electronic control system, operating procedures and common troubleshooting.

  • Language and system adaptation: Pre-install the Urdu language operation interface, complete the full-load debugging of the electrical system within 5 days, and conduct operator training simultaneously (master the core functions in 2 days);
  • Intelligent power grid management: Access the real-time data of the Pakistan power grid, automatically avoid peak power consumption through the PLC system (the local peak-valley electricity price difference is as high as US$0.3/kWh), and the annual energy consumption cost is expected to be reduced by 15%;
  • Single machine function test: Debug the vibrating screen motor (2000 hours maintenance-free), hot oil pump, and burner one by one – the burner adopts a unique purge pipeline design, and the ignition efficiency calibration can be completed without manual cleaning.

Day 21-30: Acceptance and commercial production

Entering the sprint stage of production, the three-level acceptance standards are implemented:

  • Linkage commissioning: According to the four-stage test of “no load → 30% load → 70% load → full load”, complete the linkage of cold material batching, asphalt weighing, hot material screening and other full processes to ensure that the oil-stone ratio error is less than 0.3%;
  • Environmental compliance verification: monitor combustion flue gas emissions (dust concentration
  • Customer acceptance and delivery: After the first batch of qualified mixed materials are produced, the customer will verify 12 core parameters such as production capacity (reaching more than 98% of the design value) and temperature stability (±5℃ fluctuation) on site. Once the acceptance is passed, the quality assurance service will be started.

In this way, you can see that it only takes 30 days from the arrival of asphalt plant in pakistan to the completion of commercial production, which can truly achieve a rapid transformation from input to output, greatly release the value of time, and avoid the sedimentation of project funds.

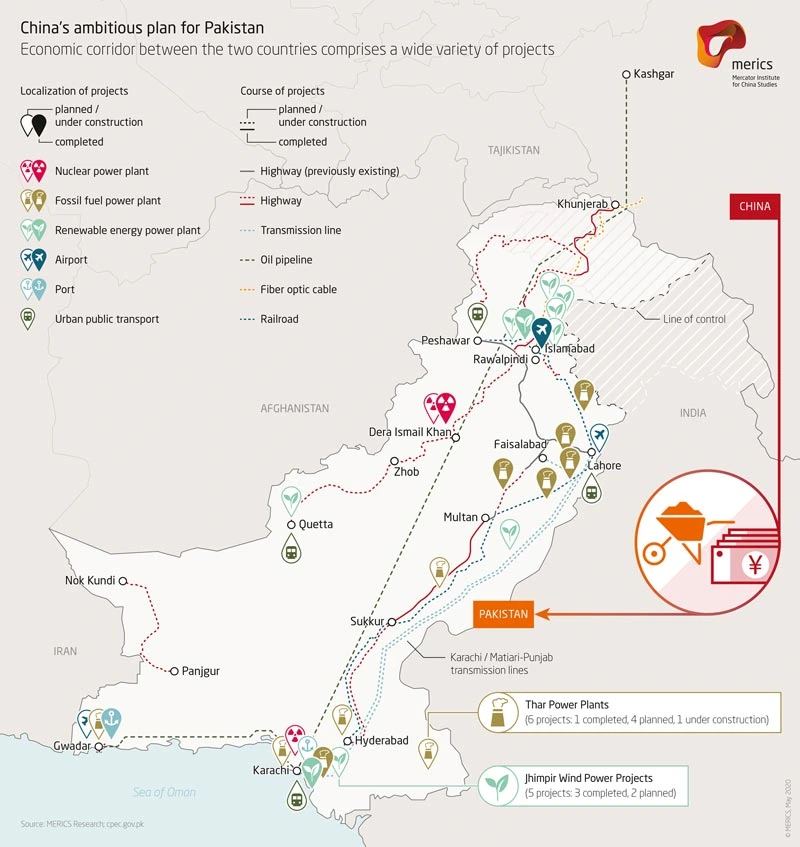

China-Pakistan Economic Corridor

China-Pakistan Economic Corridor

Panoramic perspective of ongoing projects of asphalt plant in Pakistan

Transportation artery network:

  • Peshawar-Karachi Expressway (PKM Project): The 1,152-kilometer “economic lifeline” uses modified asphalt technology (high temperature resistance increased by 200%), and the Sukkur-Multan section alone consumes 30,000 tons of asphalt from Sinopec.
  • Karakoram Highway (KKH) realignment project: A framework agreement was signed in 2024 to widen the existing highway to 30 meters with a design speed of 80 kilometers per hour, which is expected to drive asphalt demand along the route to more than 500,000 tons.
  • Gwadar Port Phase III expansion: The construction of the nuclear submarine maintenance facility area will be launched in 2024, and supporting projects such as the East Bay Expressway and the new international airport will be promoted simultaneously, and the asphalt consumption will continue to rise.

Energy and industrial infrastructure:

  • Sujijinari Hydropower Station: 884 MW installed capacity, supporting roads and port construction require a large amount of asphalt concrete plant.
  • Thar coalfield development: construction of open-pit coal mine transportation lines, and a surge in demand for mobile asphalt plant in pakistan.

Policy and market dual drive for asphalt plant in Pakistan

  • Tariff concessions: The second phase of the China-Pakistan Free Trade Agreement will include 75% of goods in the zero-tariff list, and the import cost of asphalt mixing equipment will be reduced by 12%-15%.
  • PPP model promotion: The “charge by ton” model of the Lahore Rail Transit Orange Line project has been included in the recommended plan of the Ministry of Finance of Pakistan, reducing customers’ initial investment by 70%.

From the PKM Expressway running through the north and south to the strategic project of Gwadar Port, from energy infrastructure to transportation network upgrades, Pakistan has formed a nationwide infrastructure boom under the framework of the China-Pakistan Economic Corridor. The demand for asphalt in the above-mentioned projects under construction alone has exceeded one million tons. Combined with tariff reductions and innovative cooperation models, the infrastructure market worth hundreds of billions is accelerating. Investing in asphalt plant in pakistan at this time is not only a strategic choice to seize the policy dividends of the “Belt and Road Initiative”, but also a wise move to seize the golden period of Pakistan’s infrastructure.

Macroad Team for all asphalt plant project

In the golden period when Pakistan’s infrastructure boom and the policy dividends of the Belt and Road Initiative overlap, Macroad has used more than ten years of local experience to create high-temperature resistant, dust-resistant, and easy-to-transfer asphalt plant in pakistan solutions, from 30 days of rapid production to 10 months of efficient payback, from intelligent operation and maintenance to full-cycle services. Let the data speak, let ten years of local experience escort, and work with Macroad to dig out sustainable value in the infrastructure boom of the Belt and Road Initiative and become a core participant in Pakistan’s infrastructure upgrade!

    1Send a requestSelect your equipment and fill out your contact information

    2Get a quoteA sales rep will send you an official quote and other related information

    3Payment & DeliveryPayment – Lead time - Delivery

    Contact Us Now!Contact us now via email: sales@macroad.solutions, or fill in the form below.
