Small portable asphalt mixing plant is widely applied in many small and medium-sized road construction projects. Because the frequent converting of construction sites requires the small asphalt plant for sale with high mobility and quick installation. Therefore, we are devoted to producing portable asphalt batch plant to solve the problems. In addition, the small portable asphalt mixing plants produced by Macroad has superior advantages of high flexibility, efficiency and reliability in comparison with other portable asphalt plant manufacturers. Here are serverl types of small portable asphalt plants for sale in Macroad for reference.
Different Types of Small Portable Asphalt Plants
- As we all know, the capacities of small asphalt plants for sale in Macroad range from 20 t/h to 60 t/h. It is very suitable for small road construction projects, especially in rural places.
- In terms of mixing methods, the small portable asphalt plants can be divided into two kinds. One is batch mix type; the other one is continuous mixing type.
- Here are some simple introductions of batch mix asphalt plant and continuous asphalt mixing plant.
Continuous Type

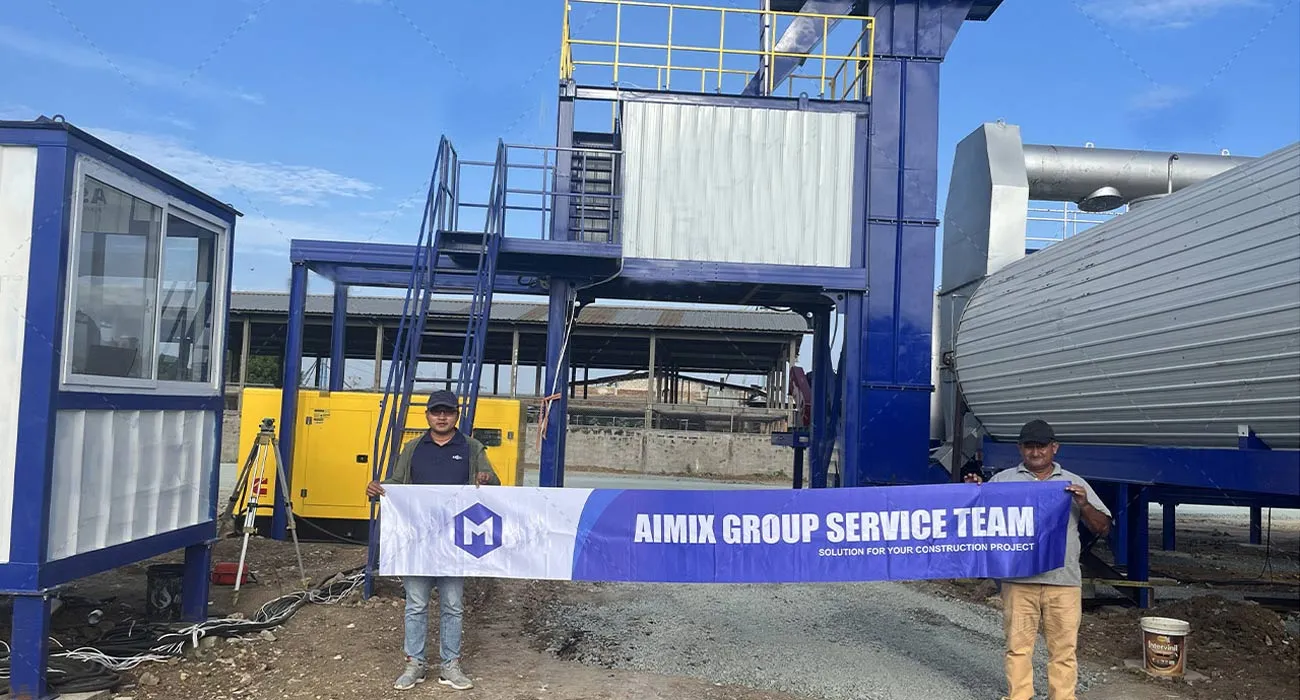

- The continuous type asphalt plant is also named after drum mix plant. It is usually used in small-scale projects such as small roads, parking lots, and airport runways.
- Different from the traditional batch-type asphalt plant, the drum asphalt plant has the advantages of high production efficiency, low energy consumption, and small footprint, so it is suitable for small road construction and maintenance projects.
- In Macroad, there are three models of moebile asphalt plants for sale, including 20, 40, and 60 t/h. Models are ALT20, ALT40, ALT60. Check them below.

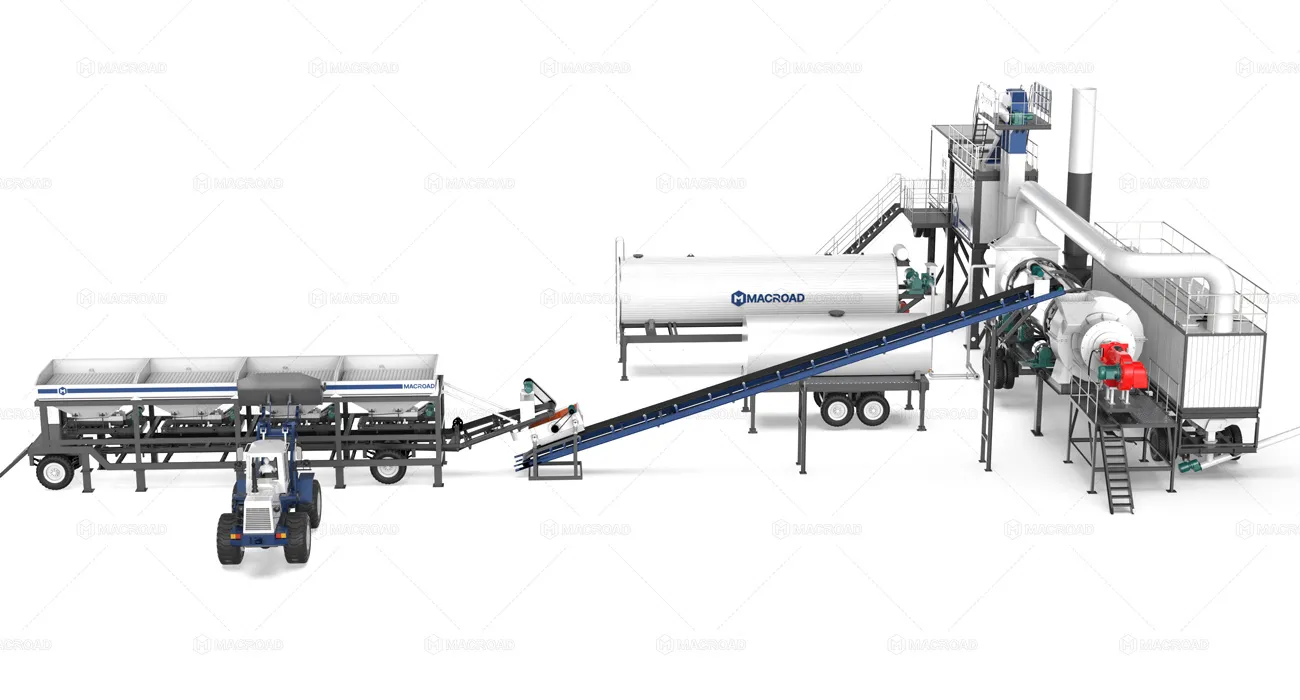

ALT20 Small Asphalt Plant
ALT40 Small Portable Asphalt Plant
ALT60 Small Asphalt Mixing Plant
Batch Mix Type
- Compared with drum mixing type, the batch mix small asphalt mixing plant can produce high-quality asphalt mixture due to it has aspahlt mixer alone.
- To meet customer’s demands, Macroad has produced two kinds: ordinary batch mix asphalt plant and simple batch mix asphalt plant. Worth mentioning, the opreation way of simple mixing type is more easier.
- Here are different capacities for choices. ALYJ series imple type capacities include: 10 t/h, 15 t/h, 20 t/h, 30 t/h, 40 t/h, 60 t/h. Models are ALYJ10, ALYJ15, ALYJ20, ALYJ30, ALYJ40, and ALYJ60. And the mobile asphalt batch plant capacity is 60 t/h. Model is ALYQ60.
- Thus, the clients can choose anyone according to the actual demands of road construction. If you are not sure, please consult our sales for suggestions.

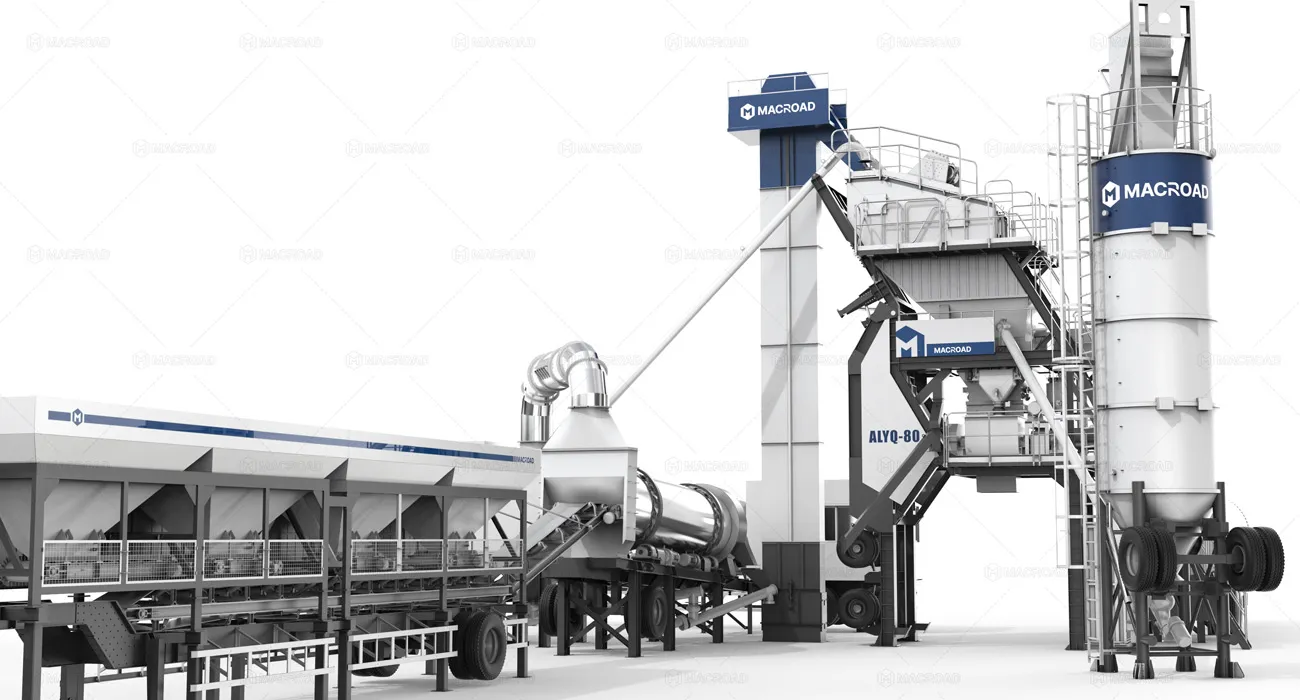

ALYQ60 Small Mobile Asphalt Plant
ALYQ60 Simple Mobile Batch Mix Plant

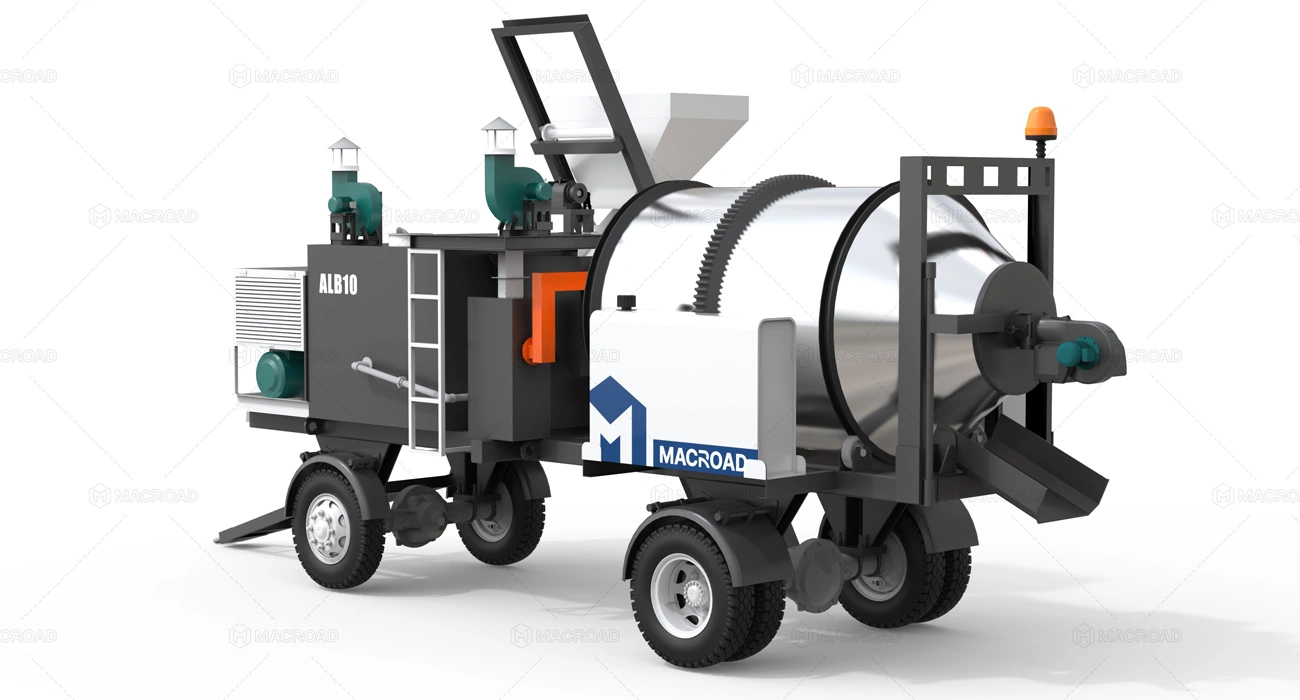

New Type Small Portable Asphalt Mixer Machine for Sale in Macroad
Recently, Macroad has launched new product for customer. This small portable asphalt mixer is convenient enough to produce new asphalt mixture which can be applicable for road maintenance. A lot of customers has inquired about this asphalt mixer machine now. Because it has lower investment and quick returns. Therefore, it is really deserved to be invested now! If you are interested in it, please contact us without hesitation.
Small Aspahlt Mixer
Portable asphalt mixer

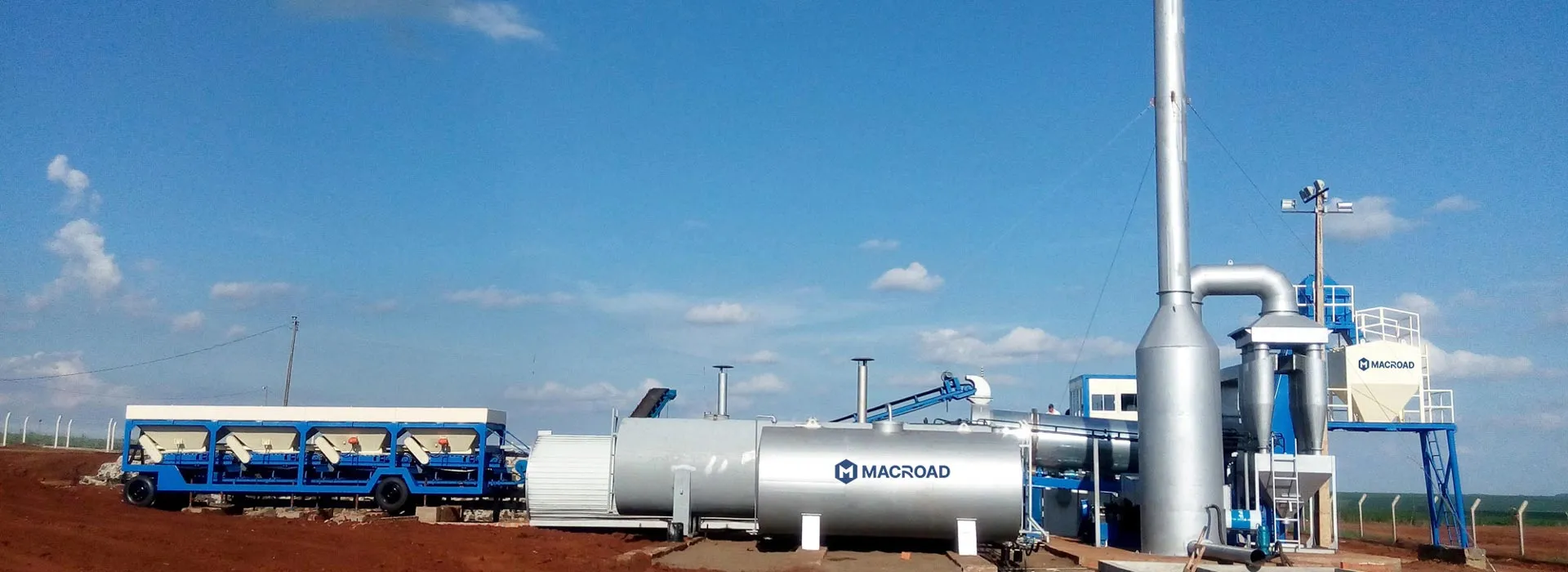

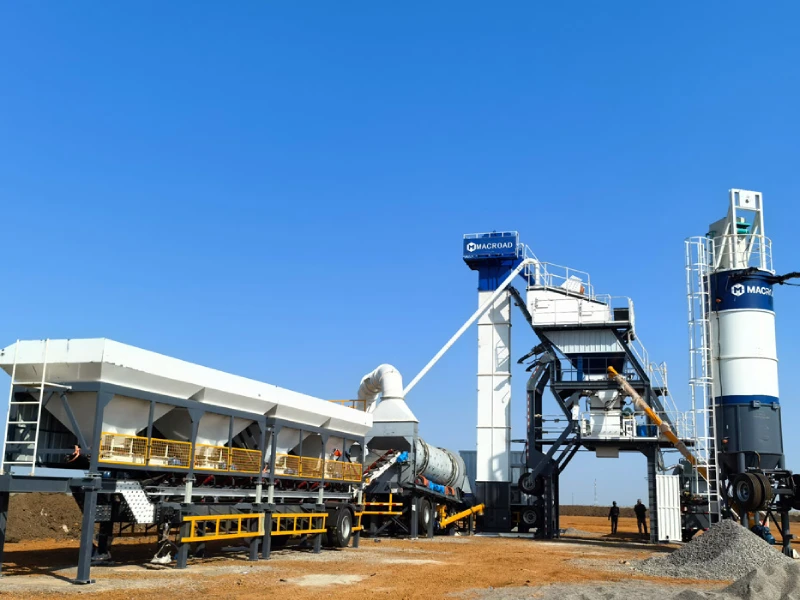

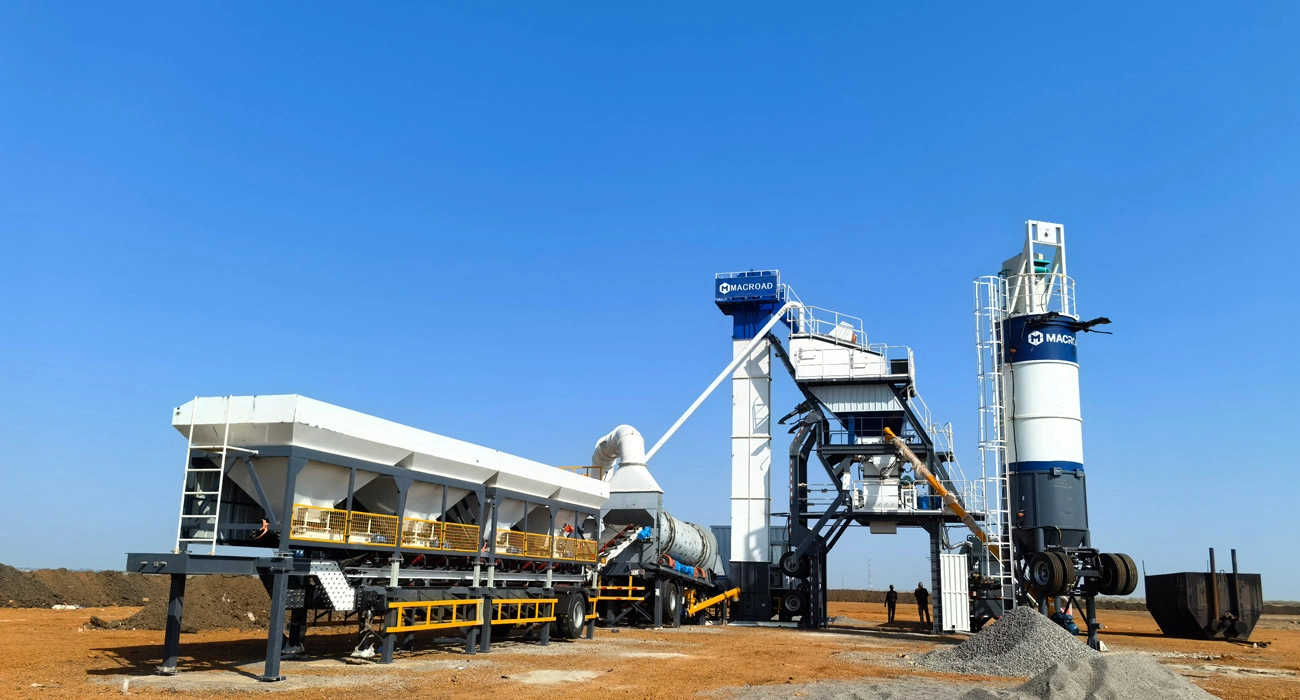

Applications of Small Portable Asphalt Mixing Plant At Abroad
- Up to now, Macroad small portable asphalt mixing plants for sale have been exported to many countries all over the world. Most customers have gave positive feedback on our asphalt plants for sale.
- On one hand, the small asphalt batch plant has unique appearance, high performance and high efficiency, which can better match construction needs.
- On the other hand, we have offered considerate service and reasonable asphalt mixing plant price to global customers.
- In general, before business, our sale will provide online service whole day. We will answer you as soosn as possible.

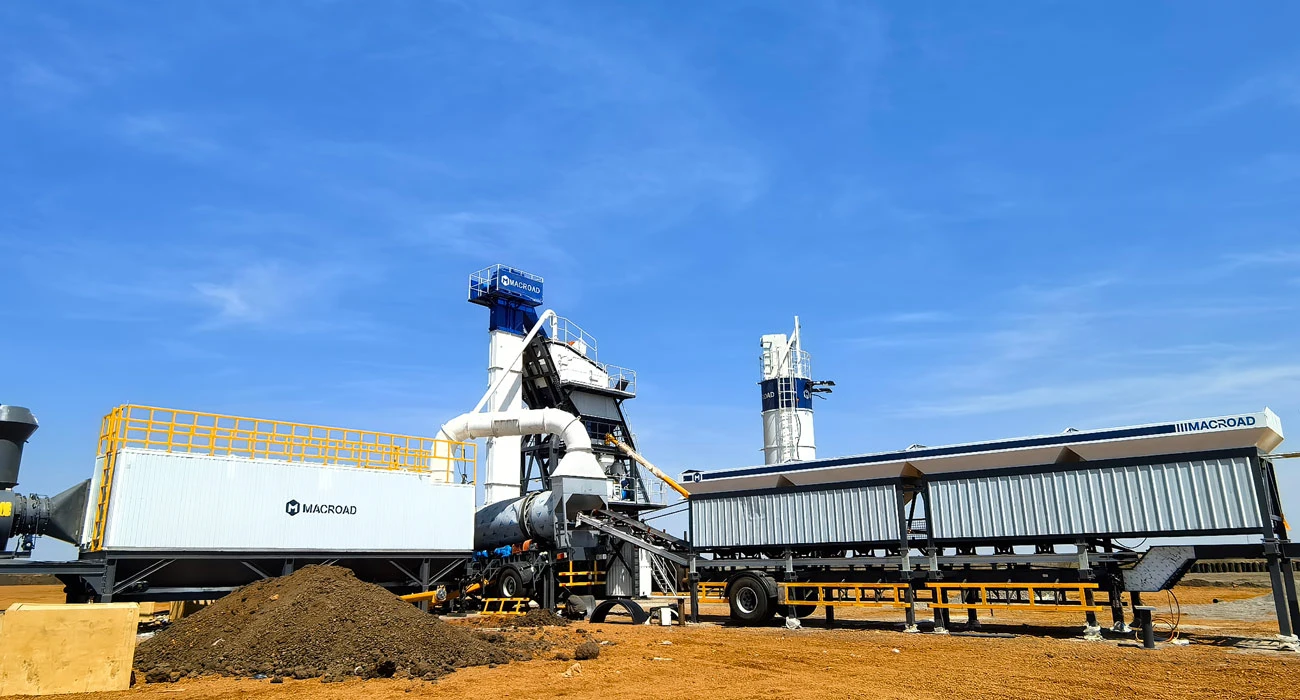

- Besides, after our machine has been delivered abroad, we will arrange for our engineer to help install it until the plant is running normally. Here are several successsful cases of our plants in the world for reference.

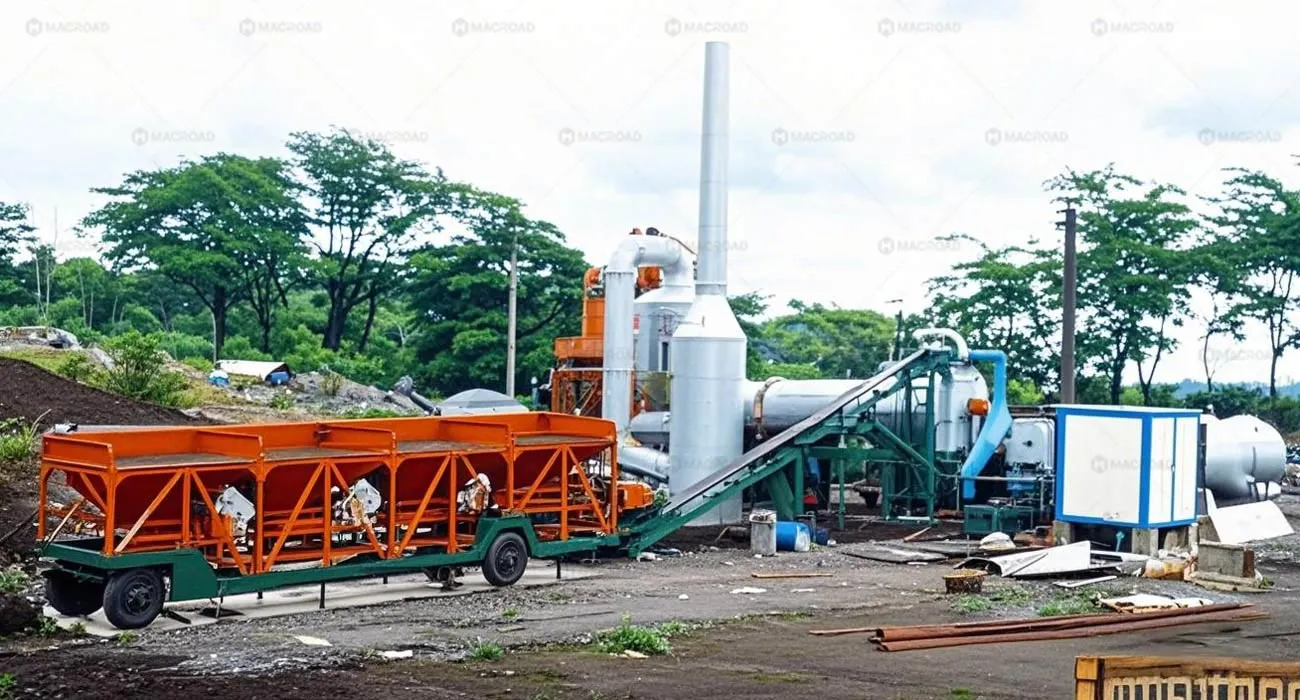

ALYJ60 Small Portable Batch Mix Plant Was Installed in The Philippines
- Installing Time: Nov, 2021
- Construction project: rural road construction in Manila
- Output: 60 t/h
- Cold Aggregate Feeding System: 5m³×3
- Finihsed Asphalt Storage Bin: 9t
ALYQ60 Small Portable Asphalt Plant in The Kazakhstan
— Installed in Feb, 2017
— Mixer(kg): 600
— Capacity: 60t/h
— Mixing cycles(s): 45
— Dry Capacity（t/h）: 50
— Vibrating layer: 4
ALT60 Small Portable Asphalt Plant in Paraguay
— Installed in Aug, 2014
— Capacity: 60t/h
— Total Power(kw): 123
— Fuel Consumption(kg/t): 5.5-7.0kg/t（Fuel）
— Effect of De-dusting(mg/Nm3): Dust discharge concentration≤50（Bag dust）
— Control Mode: Manually, Semi-Auto/ Auto
ALT60 Small Asphalt plant in Afghanistan
— Installed in Spet, 2016
— Capacity: 60t/h
— Total Power(kw): 123
— Fuel Consumption(kg/t): 5.5-7.0kg/t（Fuel）
— Effect of De-dusting(mg/Nm3): Dust discharge concentration≤50（Bag dust）
— Control Mode: Manually, Semi-Auto/ Auto
ALT60 Small Asphalt plant in Myanmar
— Installed in Mar, 2014
— Capacity: 123t/h
— Total Power(kw): 75
— Fuel Consumption(kg/t): 5.5-7.0kg/t（Fuel）
— Effect of De-dusting(mg/Nm3): Dust discharge concentration≤50（Bag dust）
— Control Mode: Manually, Semi-Auto/ Auto
Characteristics of Small Portable Asphalt Mixing Plant for Sale
- 1. The portable asphalt mixing plant is mounted on a movable trailer, which is convenient to be transported through tractor trailer.
- 2. Portable asphalt batching plant for sale has modular design, which is convenient for transportation.
- 3. It has compact structure, unique appearance, reasonable design, which is easy for operating and maintaining.

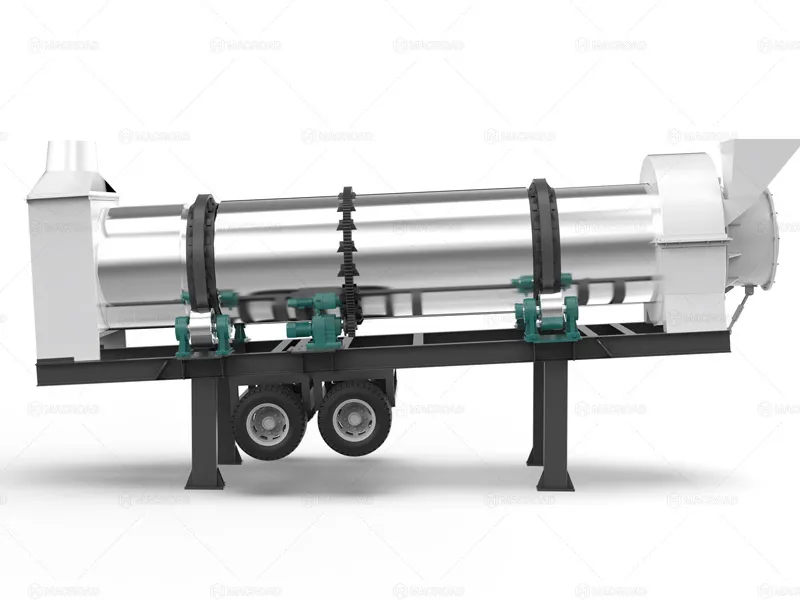

- 4. Integrated dryer drum and mixer greatly ensures the quality of bitumen mixture.
- 5. The bag dust catcher can improve material utilization rate, which can save energy consumption.
- 6. The equipment has noise reducing device, which can reduce noise pollution.
- 7. Each part of the portable asphalt plant for sale is connected closely, which can largely save occupation areas.
- 8. The optimized mixing blades with powerful mixing strength make the mixing easy, reliable and efficient.
- 9. Automatic PLC control and manual control make the operation much easier and safer.
- 10. The detection and diagnosis function can warn failures as soon as possible, which can reduce maintenance cost.
Specifications of Small Portable Asphalt Mixing Plant
| Model | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 |
|---|---|---|---|---|---|
| Output (t/h) | 20 | 40 | 60 | 80 | 100 |
| Power Fuel Oil(kw) | 34 | 65 | 105 | 135 | 170 |
| Power Burning Coal (kw) | 40 | 75 | 120 | 165 | 200 |
| Cold Aggregate Feeding System | 3.5m3*1 | 4m3*4 | 4m3*4 | 6.5m3*4 | 6.5m3*4 |
| Finihnsed Asphalt Storage Bin (t) | 3 | 3 | 7 | 7 | 9 |
| Asphalt Temperature (℃) | 120-180 | 120-180 | 120-180 | 120-180 | 120-180 |
| Fuel Consumption Fuel Ol (kg/t) | 5-7.5 | 5-7.5 | 5-7.5 | 5-7.5 | 5-7.5 |
| Fuel Consumption Buning Coal(kg/t) | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 |
| Asphalt Tank (t) | 10 | 20 | 30 | 30 | 35 |
| Control Room(m) | 2.2 | 2.2 | 3 | 3 | 3.5 |
| Option: Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter |
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 |
|---|---|---|---|---|---|
| Output (t/h) | 60 | 80 | 100 | 120 | 160 |
| Hopper Capacity(m) | 4*6.5 | 4*7.5 | 4*7.5 | 4*7.5 | 5*8 |
| Collect Belt Capacity (t/h) | 80 | 100 | 120 | 140 | 180 |
| Dryer Size(m) | φ1.5*6 | φ1.5*6.7 | φ1.65*7 | φ1.8*8 | φ1.9*9 |
| Dryer Capacity(t/h) | 80 | 100 | 120 | 140 | 180 |
| Fuel Max Consumption(kg/h) | 450 | 550 | 700 | 950 | 1200 |
| Mixing Tower（kW） | 54 | 63.5 | 104.5 | 125 | 157.5 |
| Vibrating Screen (Layer) | 4 | 4 | 4 | 4 | 4 |
| Aggregate Metering hopper(kg) | 800 | 1000 | 1300 | 1500 | 2000 |
| Mineral Flour Metering hopper(kg) | 150 | 200 | 200 | 300 | 300 |
| Bitumen Metering hopper(kg) | 120 | 150 | 150 | 250 | 250 |
| Weighing accuracy | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% |
| Mixer Capacity(kg) | 800 | 1200 | 1300 | 1700 | 2200 |
| Cycle Time(s) | 45 | 45 | 45 | 45 | 45 |
| Filter Area(m2) | 370 | 420 | 480 | 510 | 620 |
| Draught Fan (kw) | 30 | 45 | 55 | 90 | 110 |
| Asphalt Temperature (⊥) | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 |
| Total power(kw) | 200 | 300 | 350 | 380 | 490 |

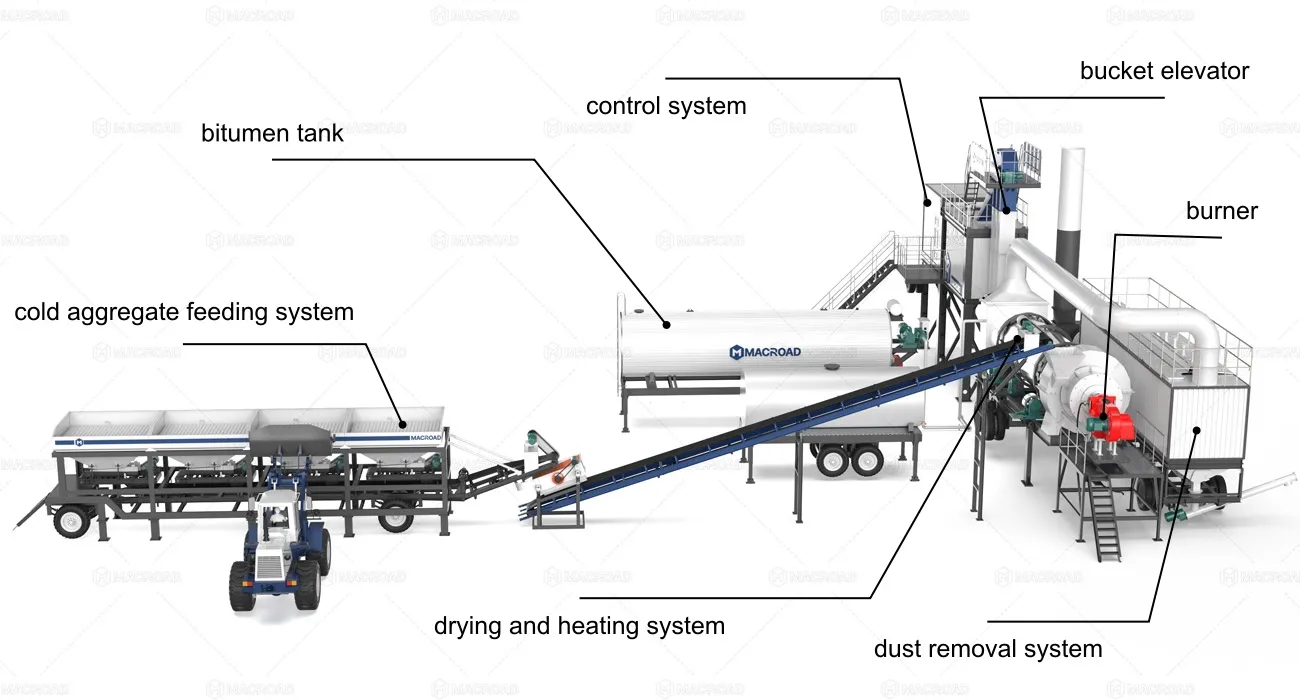

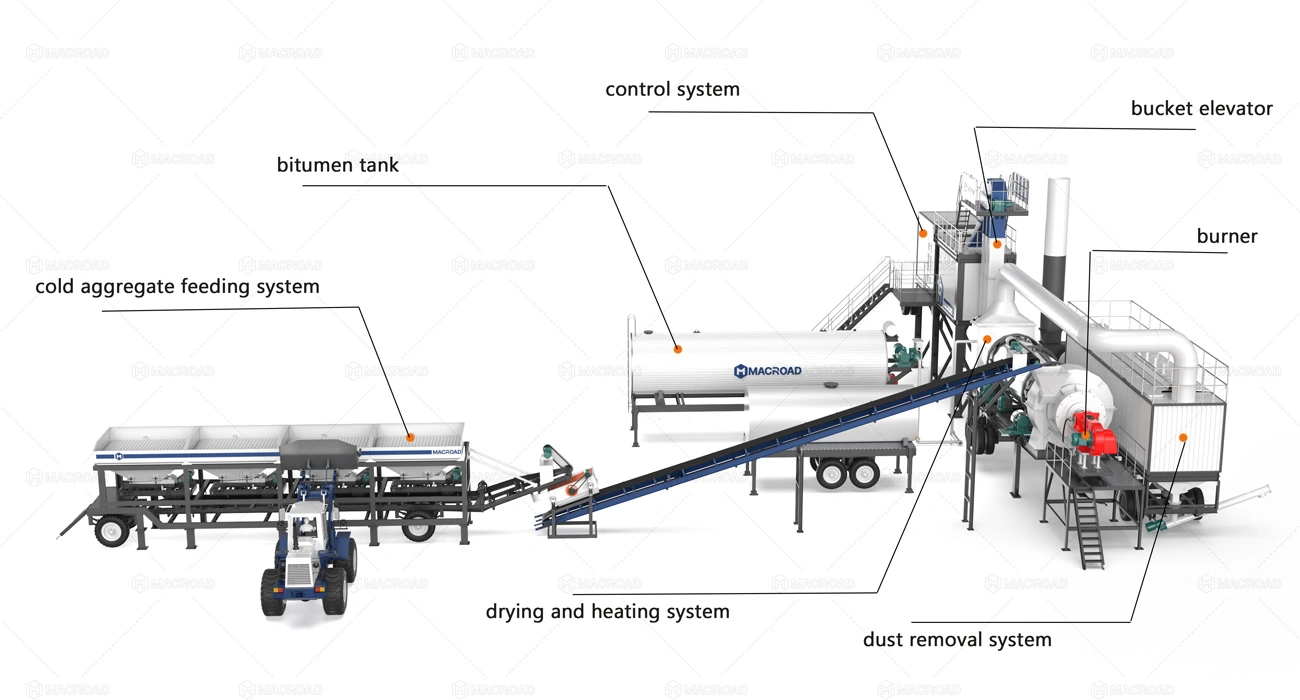

Details of Small Portable Asphalt Mixing Plant for Sale

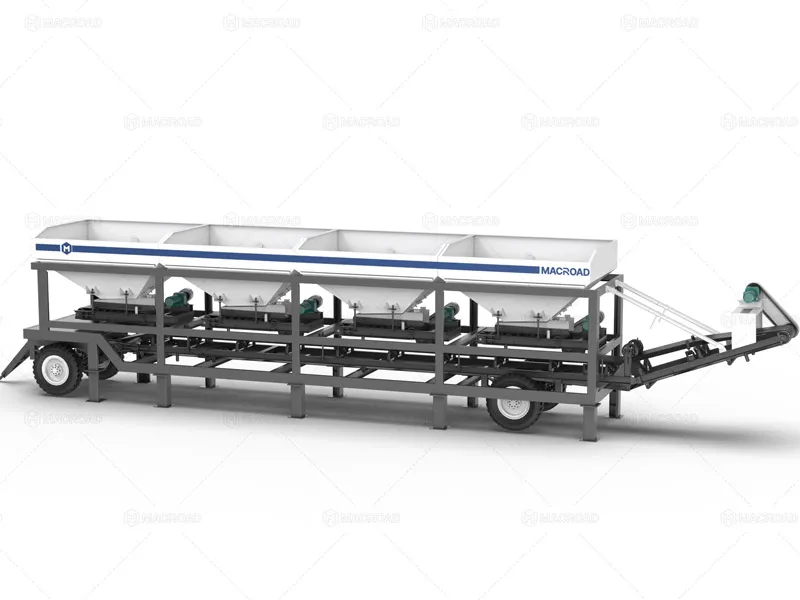

1. Cold Aggregate Container
The portable asphalt mixing plant has equipped with four containers with small volume, which is adaptable to the production capacity. The arrangement of cold aggregate can save occupation space, which makes compact structure. The cone-shaped cold aggregate can ensure smooth discharge.
