Asphalt plant in Sri Lanka has been applicable for different kinds of construction projects, such as highways, municipal administration path, airports, harbors, and wharf. Therefore, in local places, there are a lot of contractors seeking for best asphalt plant for sale in Sri Lanka.
However, it is not easy for them to opt for a quality one among so many Sri Lanka machinery manufacturers. As far as I am concerned, the first thing is to make it certain to find a reliable asphalt plant manufacturer in the market, such as Macroad, trustworthy plant manufacturer there. Macroad has exported asphalt plants to the Sri Lanka market. You can check one of the cases below.

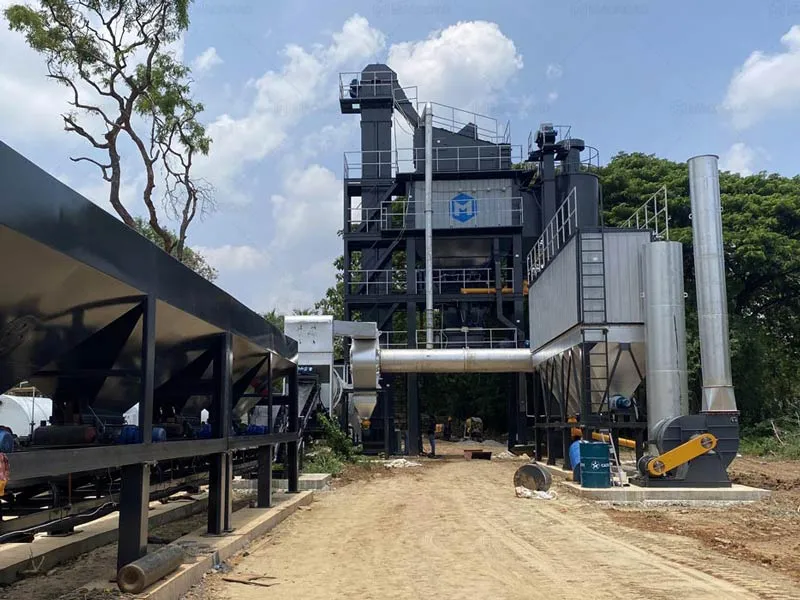

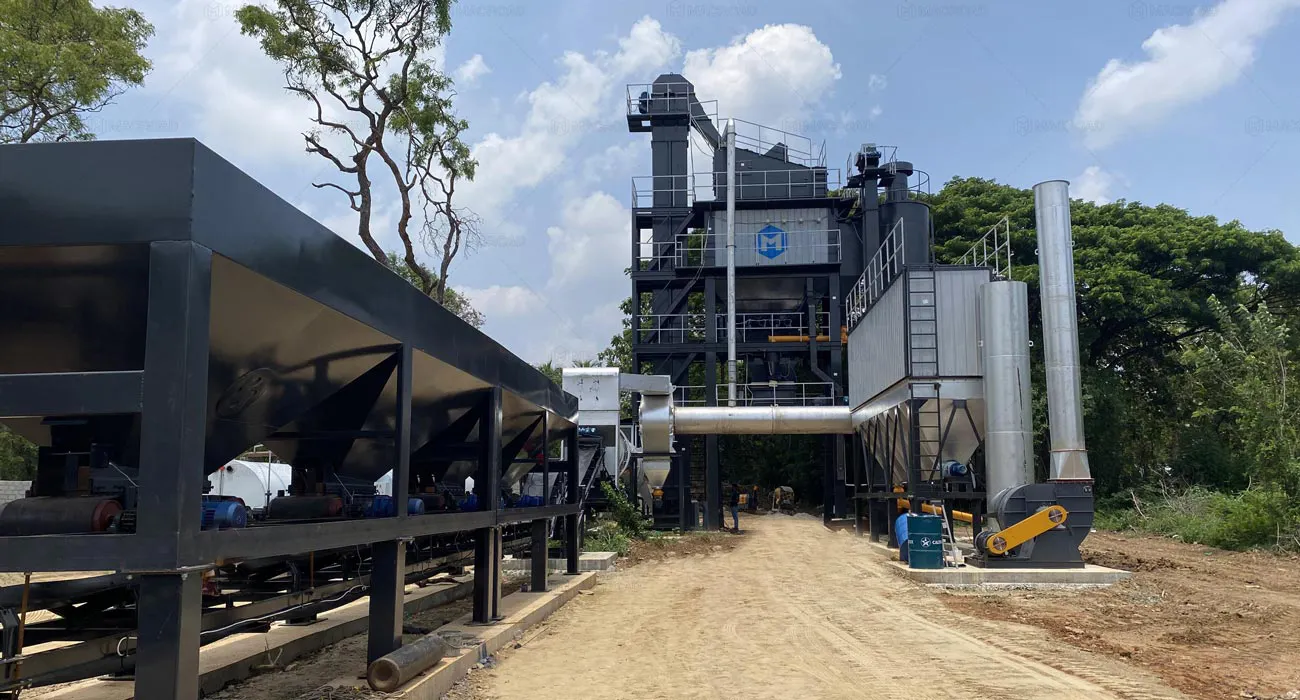

Exporting and Installing ALQ100 Asphalt Plant in Sri Lanka
Manufacturing and Exporting:
- After confirming with the clients about the model, components, and highway construction project details, Macroad started to manufacture it in the factory. Due to the large size of the ALQ series asphalt mixing plant, it took about over one month to finish the production. Then the engineers would assemble and test it to ensure performance and quality. Last, we would be apart it into components and load them into the containers.
- Upon completion of the manufacturing and testing processes, the ALQ100 asphalt plant was prepared for export. This intricate logistical operation encompassed packaging, securing, and transporting the plant components from Macroad’s facilities to the port of departure, all executed with meticulous care to ensure the plant’s integrity during transit.
Installation On-Site:

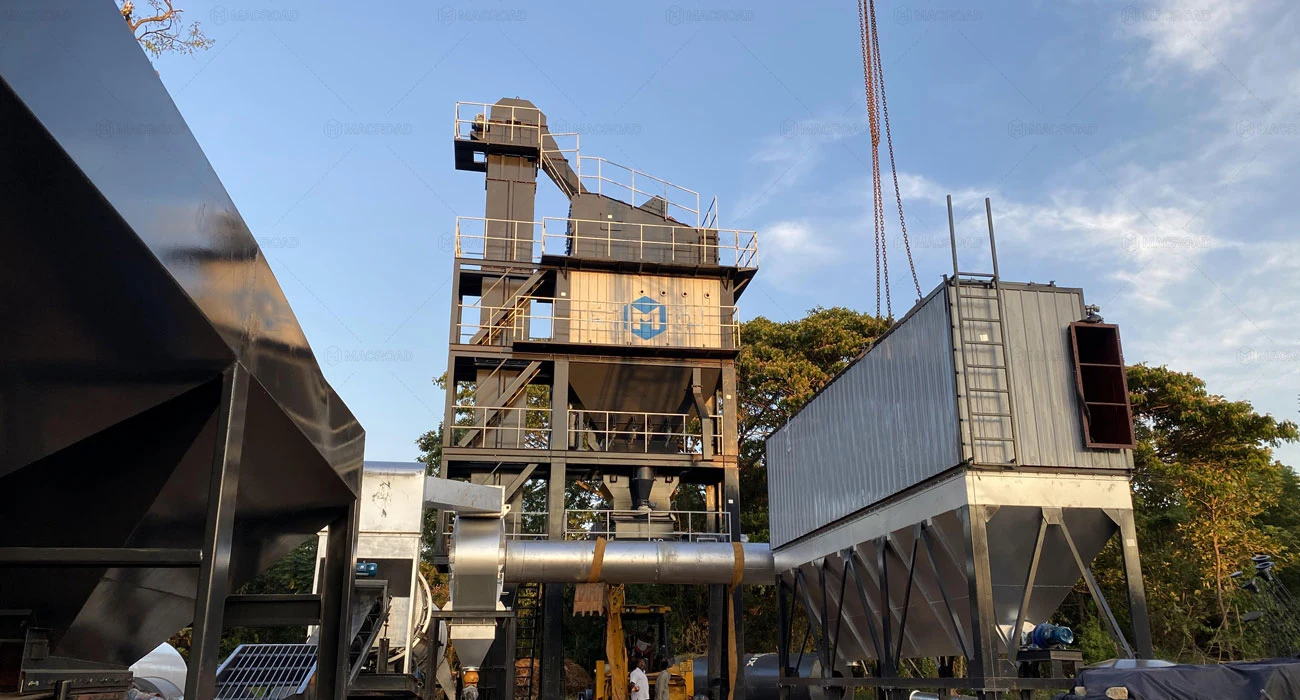

- Upon reaching the shores of Sri Lanka, the ALQ100 asphalt plant embarked on the next phase of its journey: on-site installation. Macroad’s team of experienced engineers and technicians collaborated seamlessly with local construction partners to install it successfully.
- The on-site installation encompassed a range of critical tasks, including foundation preparation, structural assembly, and integration of various components. Macroad’s technical expertise and comprehensive project management ensured that the installation process proceeded smoothly, adhering to strict timelines and quality benchmarks.
- After meticulous planning and coordination, the ALQ100 asphalt plant was put into use normally. It can produce 100 t asphalt mixture per hour. Check the working video below.
Four Kinds of Asphalt Plants in Sri Lanka
In Macroad, we can supply customers with three kinds of asphalt plants Sri Lanka, including ALQ series stationary batch mix type, ALYQ series mobile batch mix type, ALT series drum mix type and ALYT series mobile drum mix type for selecting. Besides, capacities from 10 t/h to 320 t/h are available among them. Thus, there is a wide range of choices. Check them one by one below.
| Model | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 | ALQ200 | ALQ240 | ALQ320 |
|---|---|---|---|---|---|---|---|---|---|
| Output(t/h) | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 240 | 320 |
| Cold Aggregate Feeding System | 4×4.5m³ | 4×6.5m³ | 4×7.5m³ | 4×7.5m³ | 5×7.5m³ | 5×12m³ | 5×12m³ | 5×12m³ | 6×15m³ |
| Hopper Capacity(m) | 4*4.5 | 4*6.5 | 4*7.5 | 4*7.5 | 5*7.5 | 5*12 | 5*12 | 5*12 | 6*15 |
| Collect Belt Capacity(t/h) | 60 | 80 | 100 | 120 | 140 | 200 | 220 | 280 | 360 |
| Dryer Size(m) | φ1.2*5.2 | φ1.5*6 | φ1.5*6.7 | φ1.65*7 | φ1.8*8 | φ2.2*9 | φ2.6*9 | φ2.6*9.5 | φ2.8*10.2 |
| Dryer Capacity (t/h) | 60 | 80 | 100 | 120 | 140 | 180 | 240 | 260 | 360 |
| Fuel Max Consumption(kg/h) | 300 | 450 | 550 | 700 | 950 | 1200 | 1400 | 1700 | 2250 |
| Vibrating Screen(Layer) | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 |
| Aggregate Metering hopper(kg) | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Mineral Flour Metering hopper (kg) | 120 | 150 | 200 | 200 | 300 | 300 | 320 | 600 | 700 |
| Bitumen Metering hopper (kg) | 100 | 120 | 150 | 150 | 250 | 250 | 250 | 480 | 500 |
| Weighing accuracy | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% |
| Mixer Capacity(kg) | 500 | 800 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Cycle Time(s) | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Dust filter (Bag dust filter) | |||||||||
| Filter Area(m2) | 230 | 300 | 420 | 480 | 550 | 650 | 700 | 1050 | 1350 |
| Draught Fan(kw) | 22 | 30 | 45 | 55 | 90 | 110 | 2*75 | 2*90 | 2*110 |
| Asphalt Temperature (⊥) | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 |

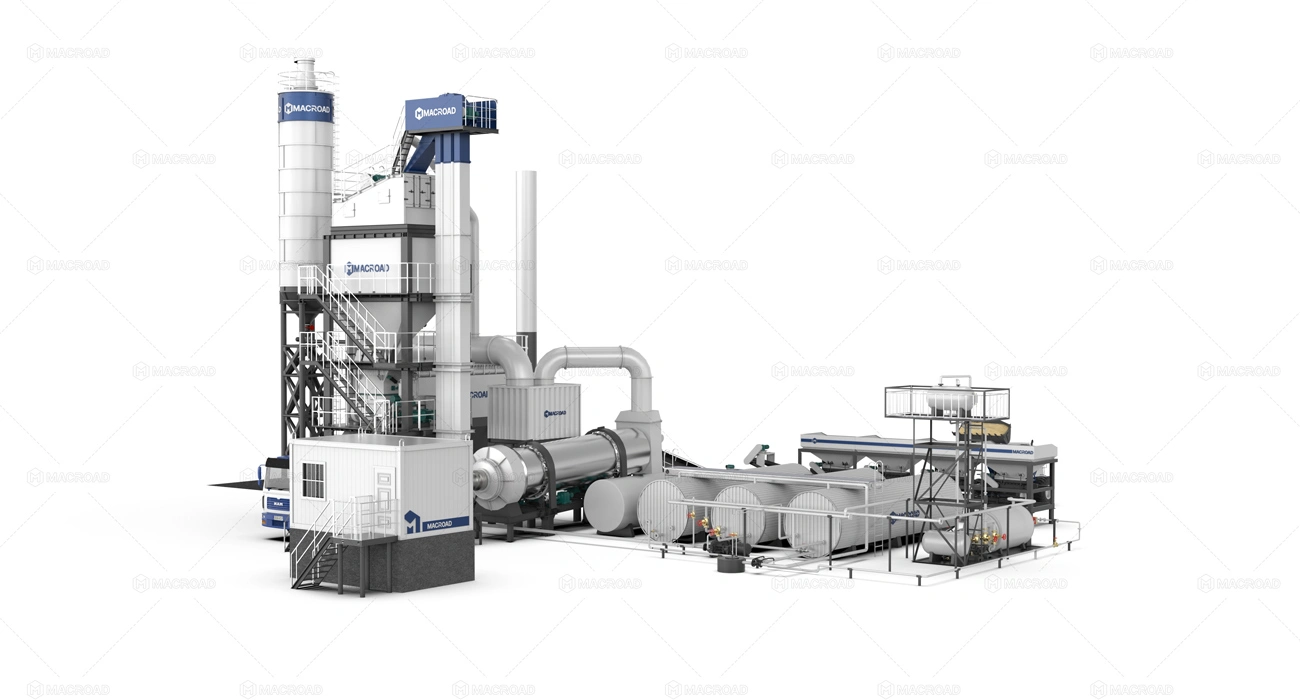

ALQ series asphalt plant – 40 ~ 320 t/h
This kind of stationary asphalt plant Sri Lanka has a wide capacity, from 40 t/h to 320 t/h. It is installed on construction sites, which is not convenient to move on spots. It has a modular design and reasonable structure, which can assemble quickly. With stable performance, it has a longer service life.
| Model | ALYQ60 | ALYQ80 | ALYQ100 | ALYQ120 | ALYQ160 |
|---|---|---|---|---|---|
| Output (t/h) | 60 | 80 | 100 | 120 | 160 |
| Hopper Capacity(m) | 4*6.5 | 4*7.5 | 4*7.5 | 4*7.5 | 5*8 |
| Collect Belt Capacity (t/h) | 80 | 100 | 120 | 140 | 180 |
| Dryer Size(m) | φ1.5*6 | φ1.5*6.7 | φ1.65*7 | φ1.8*8 | φ1.9*9 |
| Dryer Capacity(t/h) | 80 | 100 | 120 | 140 | 180 |
| Fuel Max Consumption(kg/h) | 450 | 550 | 700 | 950 | 1200 |
| Mixing Tower（kW） | 54 | 63.5 | 104.5 | 125 | 157.5 |
| Vibrating Screen (Layer) | 4 | 4 | 4 | 4 | 4 |
| Aggregate Metering hopper(kg) | 800 | 1000 | 1300 | 1500 | 2000 |
| Mineral Flour Metering hopper(kg) | 150 | 200 | 200 | 300 | 300 |
| Bitumen Metering hopper(kg) | 120 | 150 | 150 | 250 | 250 |
| Weighing accuracy | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% | aggregate:±0.5% Mineral Flour:±0.25% Bitumen:±0.25% |
| Mixer Capacity(kg) | 800 | 1200 | 1300 | 1700 | 2200 |
| Cycle Time(s) | 45 | 45 | 45 | 45 | 45 |
| Filter Area(m2) | 370 | 420 | 480 | 510 | 620 |
| Draught Fan (kw) | 30 | 45 | 55 | 90 | 110 |
| Asphalt Temperature (⊥) | 140-180 | 140-180 | 140-180 | 140-180 | 140-180 |
| Total power(kw) | 200 | 300 | 350 | 380 | 490 |

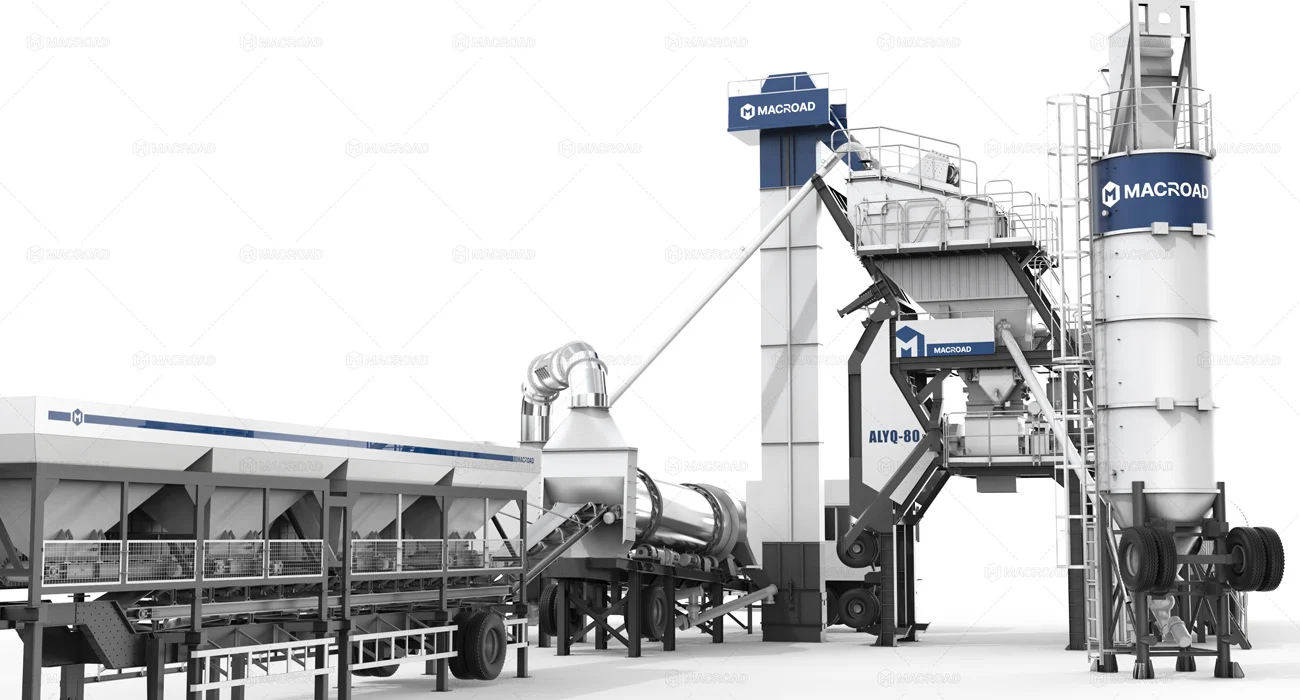

ALYQ series Asphalt Mix Plant
The mobile asphalt plant for sale with moderate capacity is more suitable for medium road construction projects. Generally, the mobile plant needs to convert construction spots. Therefore, with convenient chassis, it can be dragged through a tractor. Capacity options include 40, 60, 100, 120, and 160 t/h.
| Model | ALT20 | ALT40 | ALT60 | ALT80 | ALT100 |
|---|---|---|---|---|---|
| Output (t/h) | 20 | 40 | 60 | 80 | 100 |
| Power Fuel Oil(kw) | 34 | 65 | 105 | 135 | 170 |
| Power Burning Coal (kw) | 40 | 75 | 120 | 165 | 200 |
| Cold Aggregate Feeding System | 3.5m3*1 | 4m3*4 | 4m3*4 | 6.5m3*4 | 6.5m3*4 |
| Finihnsed Asphalt Storage Bin (t) | 3 | 3 | 7 | 7 | 9 |
| Asphalt Temperature (℃) | 120-180 | 120-180 | 120-180 | 120-180 | 120-180 |
| Fuel Consumption Fuel Ol (kg/t) | 5-7.5 | 5-7.5 | 5-7.5 | 5-7.5 | 5-7.5 |
| Fuel Consumption Buning Coal(kg/t) | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 |
| Asphalt Tank (t) | 10 | 20 | 30 | 30 | 35 |
| Control Room(m) | 2.2 | 2.2 | 3 | 3 | 3.5 |
| Option: Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter | Bag Dust Filter |

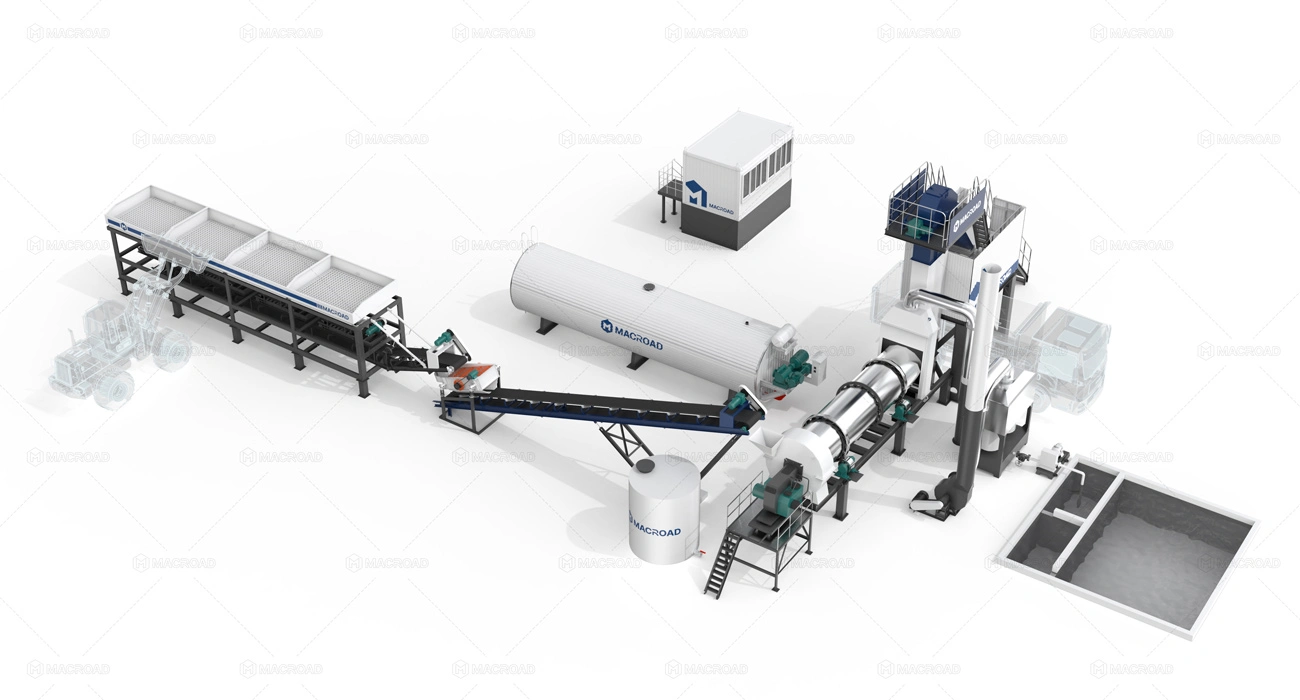

ALT series Drum Asphalt Mixing Plant
It is also named after the continuous asphalt mixing plant Sri Lanka. The main reason is that the drum mix plant can ensure produce asphalt mixture continuously. Without alone asphalt mixer, the whole drying and mixing processes are carried out in a dryer drum, which can help save production time.

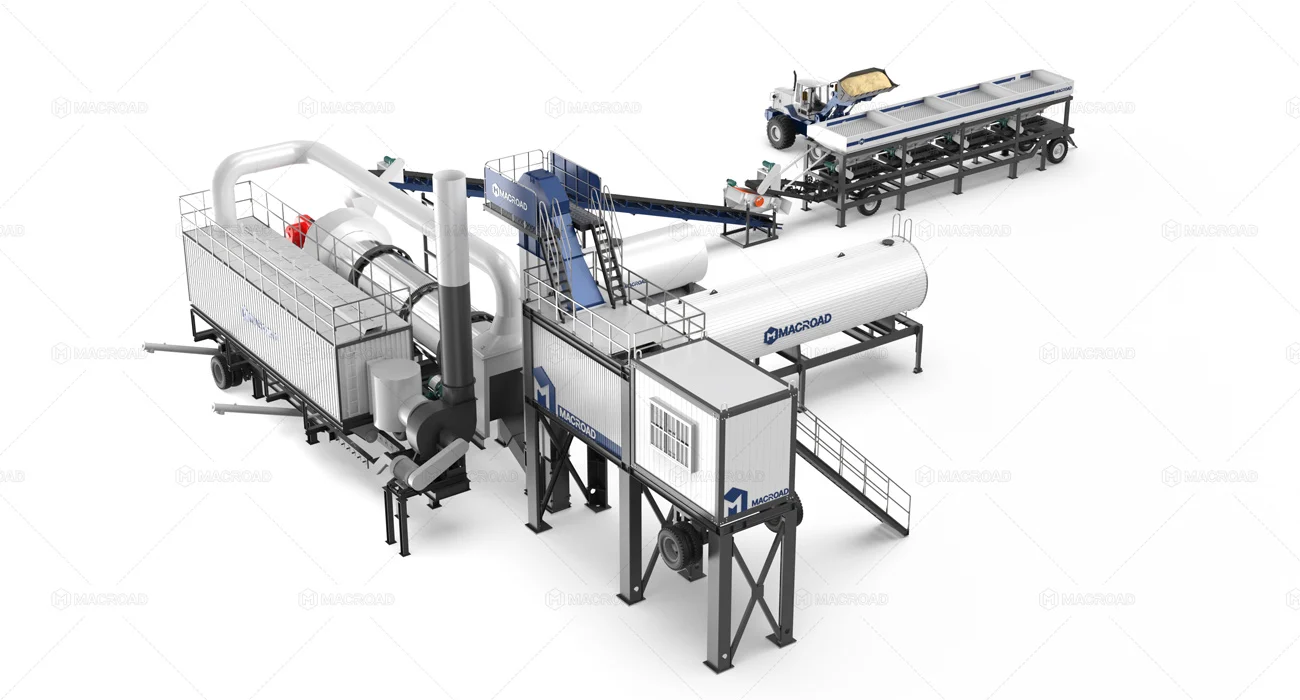

| Model | ALYT20 | ALYT40 | ALYT60 | ALYT80 | ALYT100 |
|---|---|---|---|---|---|
| Output (t/h) | 20 | 40 | 60 | 80 | 100 |
| Power Fuel Oil(kw) | 34 | 65 | 105 | 135 | 170 |
| Power Burning Coal (kw) | 40 | 75 | 120 | 165 | 200 |
| Cold Aggregate Feeding System | 3.5m3*1 | 4m3*4 | 4m3*4 | 6.5m3*4 | 6.5m3*4 |
| Finihnsed Asphalt Storage Bin (t) | 2 | 2.5 | 4.5 | 5 | 7 |
| Asphalt Temperature (℃) | 120-180 | 120-180 | 120-180 | 120-180 | 120-180 |
| Fuel Consumption Fuel Ol (kg/t) | 5-7.5 | 5-7.5 | 5-7.5 | 5-7.5 | 5-7.5 |
| Fuel Consumption Buning Coal(kg/t) | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 |
| Asphalt Tank (t) | 10 | 20 | 30 | 30 | 35 |
| Control Room(m) | 2.2 | 2.2 | 3 | 3 | 3.5 |
| Option | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector | bag dust collector / water dust collector |
Why Choose Sri Lankan Asphalt Plant from Macroad?
We can imagine that there are so many asphalt plants for sale in the market. While customers would be puzzled about why to use Macroad asphalt plant? What are the advantages and benefits? What about its quality and after-sales service? How about its price? Here I have listed some reasons.
-
- 1. Different kinds of asphalt plants and wide range capacities for selection. Moreover, we can help customize asphalt plant parts according to your construction needs. For example, optional components aren’t your necessary purchase.
- 2. Having adopted imported electric components, the asphalt equipment can prolong its life span.
- 3. CE and ISO certificates have been gained. Therefore, the quality of the asphalt plant can be ensured.
-
- 5. We have exported several asphalt hot mix plants to Sri Lanka. Most of them keep working on sites. So if necessary, we can guide your visit to sites before making orders.
- 7. About asphalt batching plant price, we can promise to provide the most reasonable price for our customers. Because in China, we have our asphalt plant factory. The asphalt mixing plant price must be affordable and attractive.
Contact Us
Therefore, if you wanna get a quotation for our asphalt mixing plant for sale, please contact us right now! Contacting us is available through the following forms.
